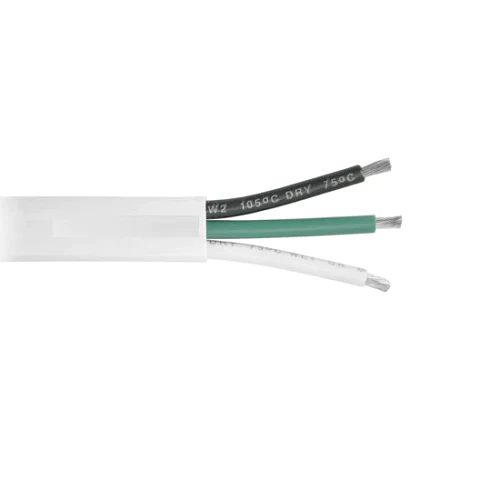

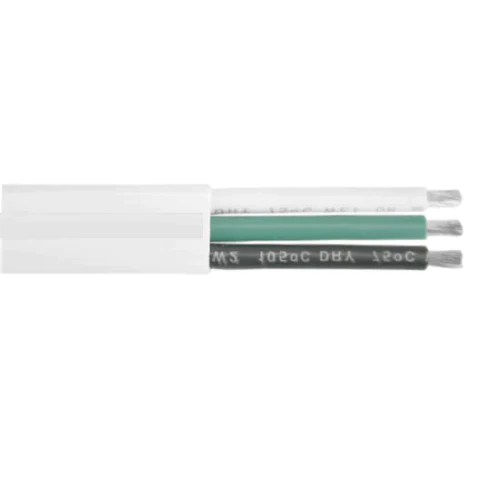

6 AWG 3 Conductor White Jacket Triplex Boat Flat Cable

Also Known As:

Triplex Boat Cable, Highly Flexible Cable, Multi Conductor Cable, White Jacket Cable, Tinned Copper Cable, Color Coded Cable, Flat Cable

About:

Flat triplex boat cable is used for AC circuits in boats and recreational vehicles. manufactures 6 AWG triplex boat cable in Sarasota FL, USA for maximum durability and easy installation. How do they do this Well, the finely stranded tinned copper wires prevent corrosion. They do this while allowing the triplex boat cable to be flexible. Flexibility is essential when working in enclosed marine spaces. Another important aspect of 6 AWG triplex boat cable is the insulation. The PVC insulation provides protection from moisture and fatigue from movement and vibration. extrusion process fills the voids between conductors. This eliminates the possibility of air or moisture building up between the wires. This, in turn, helps to prevent corrosion. To make it even better, talcum powder is coated on the wires. This powder coating allows for the easy removal of the jacket during installation. This cable is perfect for use with multiconductor cable connectors.

Applications:

• UL triplex cable is perfect for AC circuits in boats and recreational vehicles.

Construction:

• Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Standards:

• UL Standard 1426
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant
• UL Compliant

Features:

• Stranded, tinned copper
• Color coded conductors
• Tough PVC Jacket
• Highly flexible
• Easy to strip and route

Specifications:

• Size AWG: 6
• No. of Conductors: 03
• Conductor Stranding: 7x38/0.0100
• Nom. Jacket Thickness: 0.045 Inch
• Nom. Cable O.D. : 0.450 x 1.140 Inch
• Part Number: NNCW6/3-B
