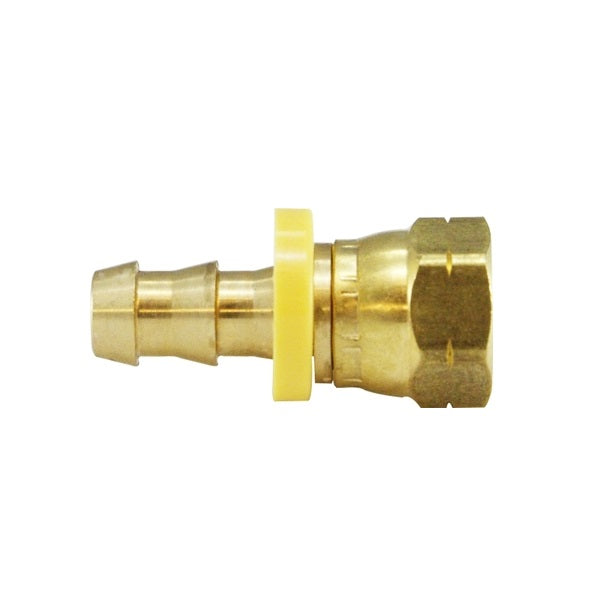

3/8" Push On Hose Barb X 3/8" 45 Degree SAE Flare Swivel Brass Fittings 30252
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| A: | 1.73 |
| B: | 0.97 |
| Hex: | 0.75 |
| Part Number: | 30252 |
| Thread: | 5/818 |
| Approx Wt Lbs: | 0.100 lbs |
| Hose Id X Female 45 Flare: | 3/8" x 3/8" |
| Shape: | Straight/Connector |
3/8" X 3/8" Push On Hose Barb X 45 Degree SAE Flare Swivel Brass Fittings 30252
Also Known
3/8 X 3/8 PUSH ON HOSE BARB X F FLARE SWIVEL
Typical Application:
Low-Pressure Air, Fuel, Lube, and Oil Lines
• Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps are needed!!
• Assembly Instructions
1- Lubricate insert.
2- Hold the hose at an angle to insert over the first barb.
3- Continue to push straight on until the hose is seated under the protective plastic cap. Keep hands back from the hose end area so that hose can expand.
• Disassembling Instructions
1- Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2- Bend hose and remove with a quick pull.
