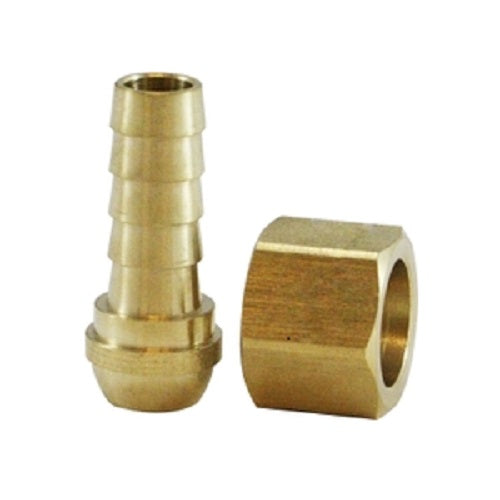

3/16" Hose X 1/4" NPSM Hose Barb X Ball End Swivel Brass Fittings 32068

Name: 3/16" Hose X 1/4" NPSM Hose Barb X Ball End Swivel Brass Fittings 32068
Brand: MidLand Industries
SKU: 32068 - 3/16 X 1/4
Price: 2.11 USD
Availability: InStock
Rating: 4.92 (8179 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: 32068 - 3/16 X 1/4

Availability: In stock

Price:

Regular price: $2.11
Sale price: $2.11

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Qty:

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Hex:	0.5
A:	0.75
B:	0.52
Part Number:	32068
Approx Wt Lbs:	0.040 Lbs
Hose Id X Male Bspt:	3/16” x 1/4”
Shape:	Straight/Connector
Note:	NPSM - Ball seat type
Subheading:	NPSM - Ball seat type

3/16" X 1/4" Hose Barb X Ball End Swivel Brass Fittings 32068

Description:

3/16 X 1/4 HOSE BARB X BALL END SWIVEL

Also Known As:

Elbow, Brass Fitting, Pipe Fitting , Straight Elbow, Connector Elbow

Temperature: Working Pressure Ranges From -400 F to + 1600 F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Assembly Instructions: 1- Cut hose cleanly and squarely to length.

Slide Clamp On Hose.
Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right).

View Catalog Page
