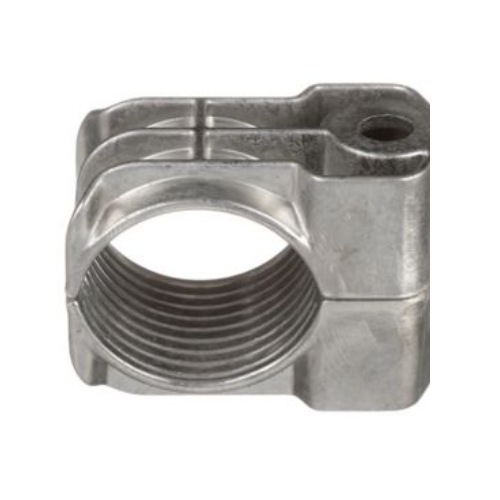

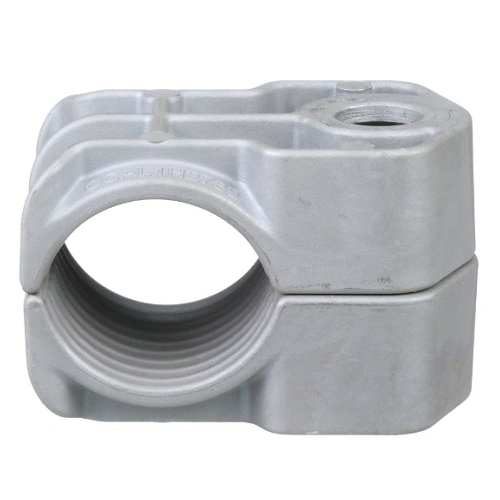

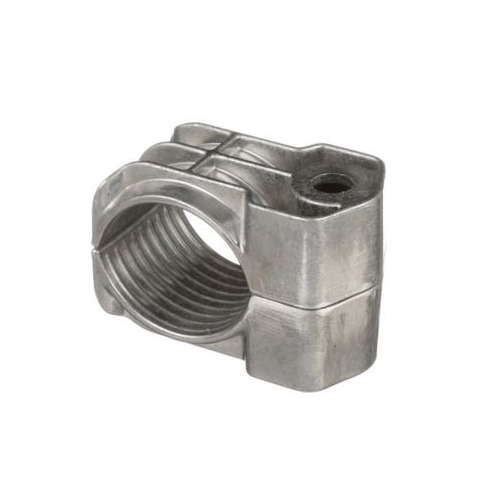

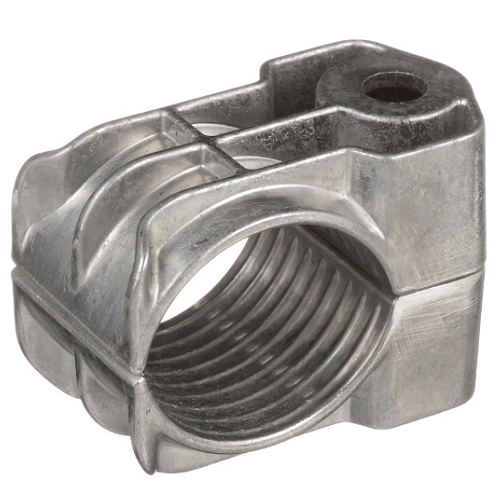

19-23mm Cable Cleat Aluminum M10 Mounting 1Hole Clamp CCAL1H1923-X (Pack of 10)

Name: 19-23mm Cable Cleat Aluminum M10 Mounting 1Hole Clamp CCAL1H1923-X (Pack of 10)
Brand: Wire Xpress
SKU: CCAL1H1923-X
Price: 446.64 USD
Availability: InStock
Rating: 4.92 (8167 reviews)

Roll over image to Zoom

19-23mm Cable Cleat Aluminum M10 Mounting 1Hole Clamp CCAL1H1923-X (Pack of 10)

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: CCAL1H1923-X

Select a Variant

19-23mm Cable Cleat Aluminum M10 Mounting 1Hole Clamp CCAL1H1923-X (Pack of 10)

Availability: In stock

Price:

Regular price: $446.64
Sale price: $446.64

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Qty:

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Specification :

Product Type	Aluminum Cable Cleat
Color	Natural
Environment	Indoor/Outdoor
For Use With	Single cables w/a cable diameter of 19-23mm
Material	Aluminum
Maximum Installation Temperature (°C)	60
Maximum Installation Temperature (°F)	140
Minimum Installation Temperature (°C)	-40
Minimum Installation Temperature (°F)	-40
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Resistance Properties	Flame-Resistant
Standards Met	IEC 61914:2015
Part No:	CCAL1H1923-X

Description:

The Aluminum One-Hole Cleat is ideal for lower to medium short circuit faults in less corrosive environments. It is available in multiple sizes with cable range-taking capability and is suitable for single conductor cables. The cleat is installed direct to the cable tray rung via a fixing hole and M10 bolt. Insulating spacers and washers are available to protect against galvanic corrosion in case of dissimilar cable tray rung and cable cleat materials.

Features:

• Operating temperature -40°C to +120°C (-40°F to +248°F)

• Cast aluminum material

• Cleats comply with IEC 61914:2015 standard. Tested at third party laboratory

• Dual bolt fixing (M10)

• 10 – 57 mm cable diameter range-taking via 7 parts. Custom sizes available upon request

• Ridges help hold cable in place

• Rounded aluminum edges for cable insulation protection

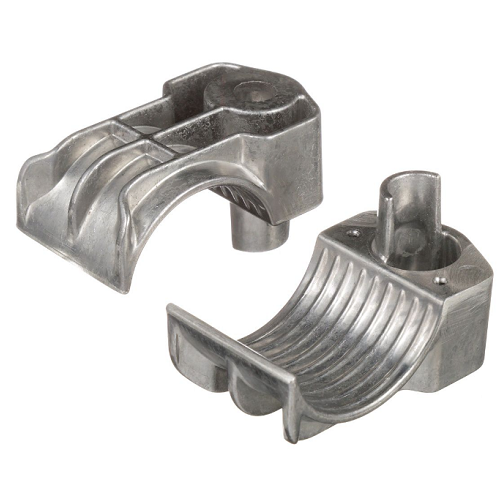

• Interlock feature prevents rotation between top and bottom pieces of cleat

• Available insulating spacers and washers
