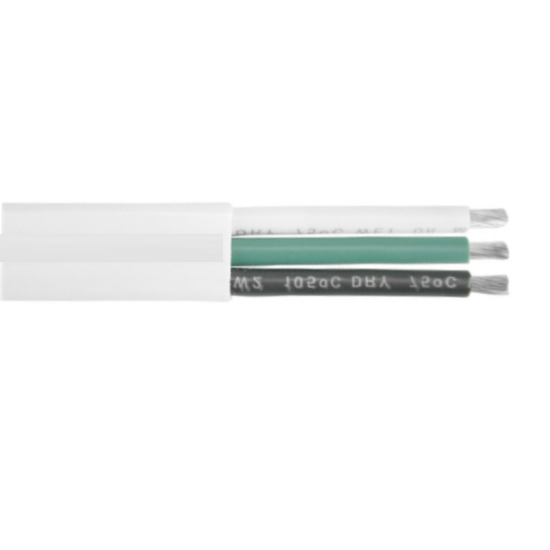

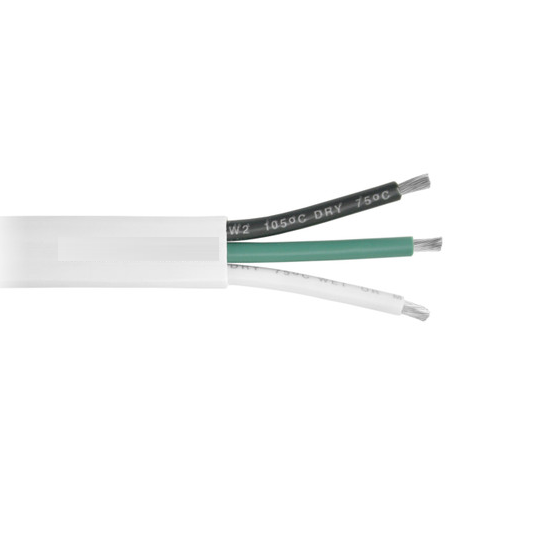

16 AWG 3 Conductor White Jacket Triplex Boat Flat Cable
Also Known As:
Triplex Boat Cable, Highly Flexible Cable, Multi Conductor Cable, White Jacket Cable, Tinned Copper Cable, Color Coded Cable, Flat Cable
About:
16 AWG Triplex boat cable is commonly used for AC circuits in boats and recreational vehicles. It is an ideal choice when looking at multi conductor boat cable. manufactures 16 AWG triplex cable for longevity easy installation. How is that accomplished It starts with finely stranded tinned copper conductors. These conductors prevent corrosion and also allow the cable to be flexible. Another important aspect of 16 AWG triplex boat cable is the insulation. The PVC insulation is designed specifically for protection from moisture and fatigue. These conductors also allow the cable to be flexible. Flexibility is essential when working in enclosed marine spaces. The PVC insulation is designed for protection from moisture and fatigue. It is created during the extrusion process. The extrusion process for this cable fills the voids between the conductors. This process eliminates any possibility of moisture or air build up in the wires. To make it even better, talcum powder is coated on the wires. This is done to allow for the easy removal of the jacket during installation. This cable is ideal for use with multi conductor cable connectors. Another reason 16 AWG triplex boat cable is ideal for use with multi conductor cable connectors.
Applications:
• UL triplex cable is perfect for AC circuits in boats and recreational vehicles.
Construction:
• Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
Standards:
• UL Standard 1426
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant
• UL Compliant
Features:
• Stranded, tinned copper
• Color coded conductors
• Tough PVC Jacket
• Highly flexible
• Easy to strip and route
Specifications:
• Size AWG: 16
• No. of Conductors: 03
• Conductor Stranding: 26/0.0100
• Nom. Jacket Thickness: 0.030 Inch
• Nom. Cable O.D. : 0.200 x 0.465 Inch
• Part Number: NNCW16/3-B
