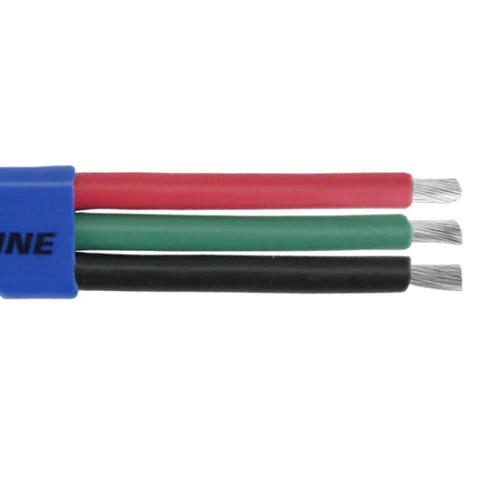

10 AWG 3 Conductor Blue Jacket Triplex Boat Flat Cable

Also Known As:

Triplex Boat Cable, Highly Flexible Cable, Multi Conductor Cable, Blue Jacket Cable, Tinned Copper Cable, Color Coded Cable, Flat Cable

About:

Triplex boat cable is often used for AC circuits in boats and recreational vehicles. manufactures 10 AWG triplex cable for easy installation and longevity. How do they do that Well, finely stranded tinned copper conductors help to prevent corrosion. At the same time these conductors allow the cable to be flexible. Flexibility is essential when working in enclosed marine spaces. Another important aspect of 10 AWG triplex boat cable is the insulation. The PVC insulation is manufactured to provide protection from fatigue and moisture. This is achieved during the extrusion process of the insulation. While extruding, leaves no void between conductors. This eliminates the possibility of moisture or air between the wires. As an added bonus, talcum powder is coated on the wires. This allows for the easy removal of the jacket during installation. Another reason 10 AWG triplex boat cable is perfect for use with multi conductor cable connectors.

Applications:

• UL triplex cable is perfect for AC circuits in boats and recreational vehicles.

Construction:

• Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Standards:

• UL Standard 1426
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant
• UL Compliant

Features:

• Stranded, tinned copper
• Color coded conductors
• Tough PVC Jacket
• Highly flexible
• Easy to strip and route

Specifications:

• Size AWG: 10
• No. of Conductors: 03
• Conductor Stranding: 105/0.0100
• Nom. Jacket Thickness: 0.030 Inch
• Nom. Cable O.D. : 0.265 x 0.645 Inch
• Part Number: NNCW10/3B-B
