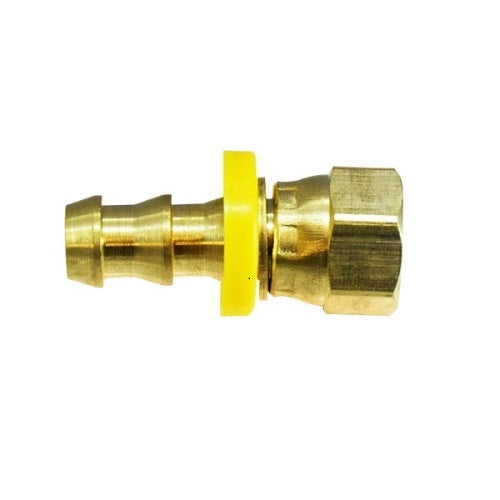

1/4" Push On Hose Barb X 1/4" Female 37 Degree JIC Flare Swivel Brass Fittings 30265
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| A: | 1.54 |
| B: | 0.87 |
| Hex: | 0.56 |
| Part Number: |
30265 |
| Thread: | 7/1620 |
| Approx Wt Lbs: | 0.04 lbs |
| Hose Id X Female 45 Flare: | 1/4" x 1/4" |
| Shape: | Straight/Connector |
1/4" X 1/4" Push On Hose Barb X Female 37 Degree JIC Flare Swivel Brass Fittings 30265
Also Known
1/4 X 1/4 PUSH ON HOSE BARB X FE JIC FLARE SWIVEL
Typical Application:
Low-Pressure Air, Fuel, Lube, and Oil Lines
• Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps are needed!!
• Assembly Instructions
1- Lubricate insert.
2- Hold the hose at an angle to insert over the first barb.
3- Continue to push straight on until the hose is seated under the protective plastic cap. Keep hands back from the hose end area so that hose can expand.
• Disassembling Instructions
1- Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2- Bend hose and remove with a quick pull.
