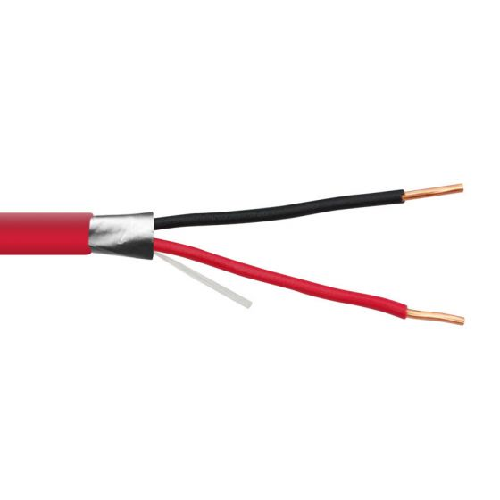

18/2C FPLP Solid FEP Plenum Shielded 75C Fire Alarm Cable 300V

18/2C FPLP Solid FEP Plenum Shielded 75C Fire Alarm Cable 300V

Description:

Fluoropolymer insulated solid bare copper conductors, twisted with an overall red low smoke PVC jacket* with rip cord. Shielded version has an aluminum tape and drain wire.

Also Know As:

18/2C FPLP Solid Cable, 18/2C FEP Plenum Cable, 18/2C FEP Plenum Shielded Cable, 18/2C Fire Alarm Cable, 18/2C 75C Fire Alarm Cable, 18/2C Alarm Cable 600V, 18/2C Fluoropolymer Cable.

Conductor Solid Bare Copper

Insulation
• 18 AWG .012” Fluoropolymer
• 16 AWG .014” Fluoropolymer
• 14 AWG .018” Fluoropolymer
• 12 AWG .020” Fluoropolymer

Jacket Low Smoke PVC Shield
• Aluminum Mylar NEC Articles
• 760 FPLP, 725 CL3P, 800 CMP
• 14-12 AWG: FPLP, CL3P

Voltage Rating 300 V

Temp. Rating -5 C to +75 C

Drain Wire 18 AWG: 24 AWG
16 AWG: 22 AWG
14 AWG: 20 AWG
12 AWG: 20 AWG

Specification:

AWG: 18
Conductor: 2
Stranded: Solid
CAP P/FT: 23/21.5
Outer Jacket Thickness: 0.015 In
Nominal OD: 0.172 In
Weight: 23 lbs / MFT
Part No: 987802SD
