Product Information

Specification

Also Known As:

• Angled Ethernet Jack
• 45-Degree RJ45 Connector
• Cat6A Angled Jack

About:

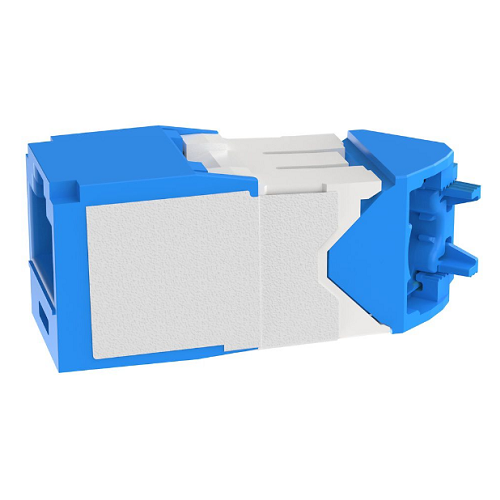

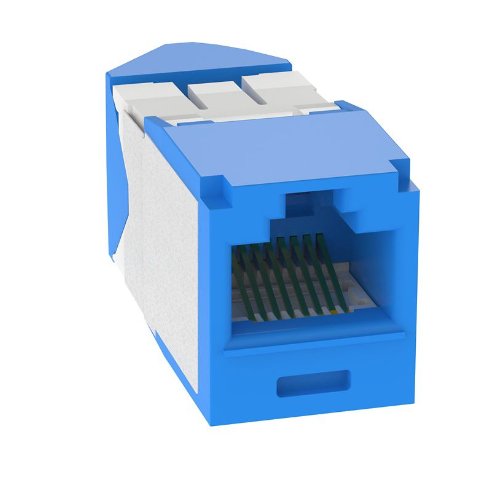

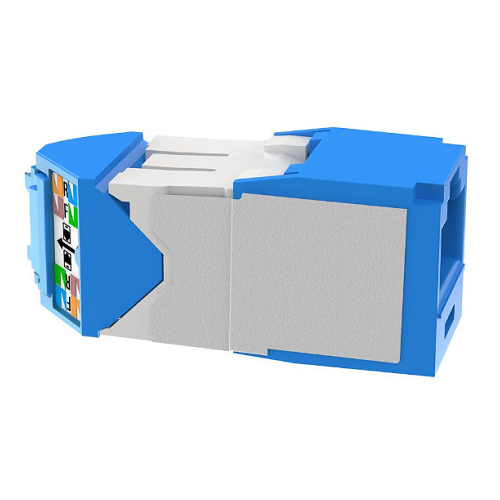

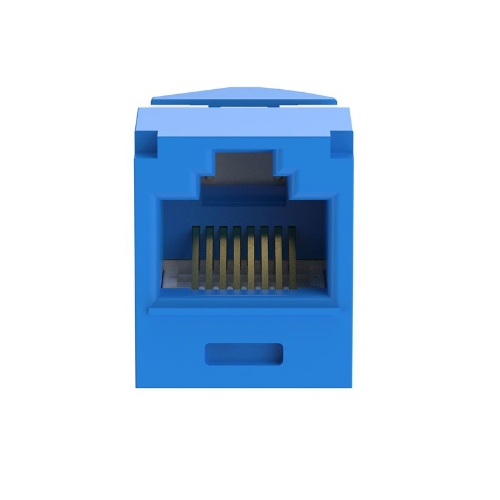

This type of module is designed for Ethernet connections and is particularly useful in confined or tight spaces where a straight connector might be impractical. It can be oriented in left or right 45-degree angles to accommodate various installation environments.

Common Applications:

• Office Networks: Useful in workstations with limited space.
• Data Centers: Helps in organizing cables effectively in confined spaces.
• Home Networks: Can be used in entertainment systems or workstations where space is a constraint.
• Industrial Networks: Suitable for installations where angled connections are required to manage space efficiently.

Features:

• High-Speed Performance: Supports Cat6A performance for faster data transmission.
• Versatile Installation: The 45-degree angle allows for versatile placement, especially in tight spaces.
• Ease of Installation: Tool-less design for quick installations.
• Compatibility: Supports a wide range of Ethernet and PoE applications.

Standards:

• ANSI/TIA-568-C.2: Ensuring performance and reliability for Cat6A components.
• ISO/IEC 11801: Could be applicable, depending on the exact specifications and use cases.

Construction:

• Material: Typically constructed from durable plastics with metal contacts for reliable connections.
• Design: Angled design to facilitate easier connections in confined spaces.
• Mechanical: Designed for easy installation and removal, with potential keyed features for added security.
