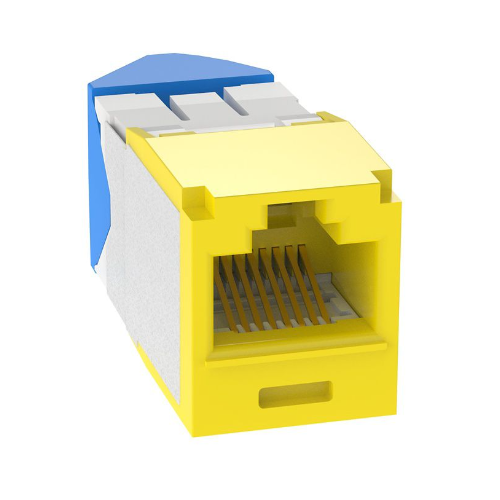

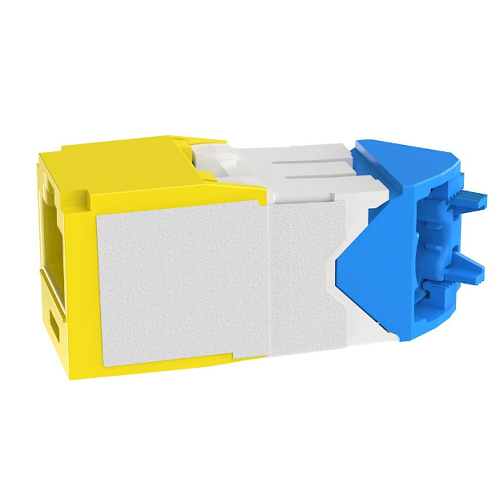

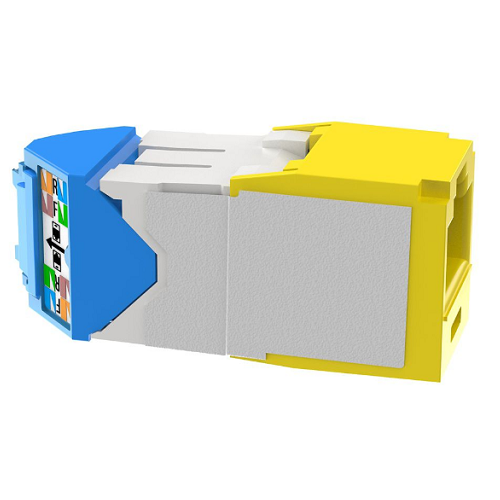

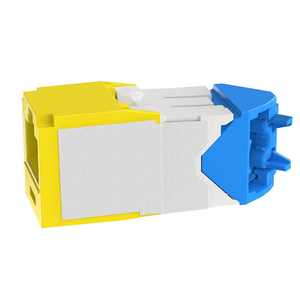

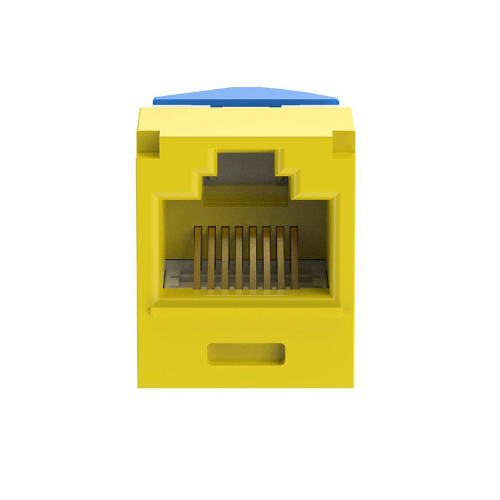

22-26 AWG Mini-Com Cat6A Left/Right 45 Angle Jack Module TG Style RJ45 CJLR6X88TGYL

Where are we? 4 Continents 8 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
Also Known As:
• 45-Degree Angled Cat6A Jack
• Enhanced Ethernet Connector
• Space-Saving Network Jack
About:
The 22-26 AWG Mini-Com Cat6A Left/Right 45 Angle Jack Module TG Style RJ45 is a specialized networking jack designed for efficient cable management and optimal performance in confined spaces. Its ability to support 22-26 AWG wire sizes makes it versatile, and the Cat6A classification ensures enhanced data transmission speeds.
Specification:
Product Type | Jack Module |
Performance Level | Category 6A |
Connector Type | Jack Module - 45° Angled Left/Right |
Termination Style | TG Style |
Body Material | Polycarbonate |
Contact Material | Plated Phosphor Bronze |
Module Type | Mini-Com® |
Wiring Scheme | T568A/T568B |
Shield Type | Unshielded (UTP) |
Sub Brand | Pan-Net® |
Maximum Operating Temperature (°C) | 75 |
Maximum Operating Temperature (°F) | 167 |
Minimum Operating Temperature (°C) | -10 |
Minimum Operating Temperature (°F) | 14 |
Maximum Storage Temperature (°C) | 75 |
Maximum Storage Temperature (°F) | 167 |
Minimum Storage Temperature (°C) | -40 |
Minimum Storage Temperature (°F) | -40 |
Resistance Properties | Heat-Resistant |
Color | Yellow |
Overall Depth (In.) | 1.75 |
Overall Height (In.) | 0.71 |
Overall Length (In.) | 1.75 |
Overall Width (In.) | 0.71 |
Part No: | CJLR6X88TGYL |
Common Applications:
• Data Centers: Efficient cable management and optimized performance in environments with space constraints.
• Office Spaces: Improved aesthetics and reduced clutter in workstations and networking closets.
• Industrial Environments: Enhanced reliability and ease of access in settings with complex equipment arrangements.
• Home Networks: Ideal for entertainment centers or home offices where space is limited.
Features:
• Enhanced Data Speeds: Supports the advanced performance characteristics of Cat6A cabling.
• Versatile Installation: The 45-degree angle supports installations in confined spaces and offers better cable management options.
• Tool-less Installation: TG Style ensures quick and easy installation without the need for specialized tools.
• Broad Wire Compatibility: Supports a variety of wire sizes from 22-26 AWG.
Standards:
• ANSI/TIA-568-C.2: Potential compliance for performance and reliability standards in telecommunications cabling.
• ISO/IEC 11801: May adhere to international standards for data center cabling and other networking applications.
Construction:
• Material: Often constructed with high-quality plastic housing and metal contacts to ensure durability and optimal signal transmission.
• Angled Design: Engineered to support left/right 45-degree angled installations for efficient cable management.
• Compatibility: Designed to accommodate a range of wire sizes, enhancing its application across various environments.
Download PDF Spec Sheet
