Igus CF77-UL-10-02-D 17 AWG 2C Stranded BC Unshielded Twistable PUR 1000V Chainflex CF77-UL-D Control Cable

Igus CF77-UL-10-02-D 17 AWG 2C Stranded BC Unshielded Twistable PUR 1000V Chainflex CF77-UL-D Control Cable

Allowable Ampacity for Igus CF77-UL-10-02-D 17 AWG 2C Stranded BC Unshielded Twistable PUR 1000V Chainflex CF77-UL-D Control Cable: 100 Amps

Also Known as:

Control Cable, Chainflex Cable, CF77-UL-D Cable, Chainflex Control Cable, CF77-UL-D Control Cable, Flexible Cable, IGUS Cable, Continues-Flex Cable, Dynamic Cable, Flexing Cable, Flex Cable, Linear Motion Cable

Description:

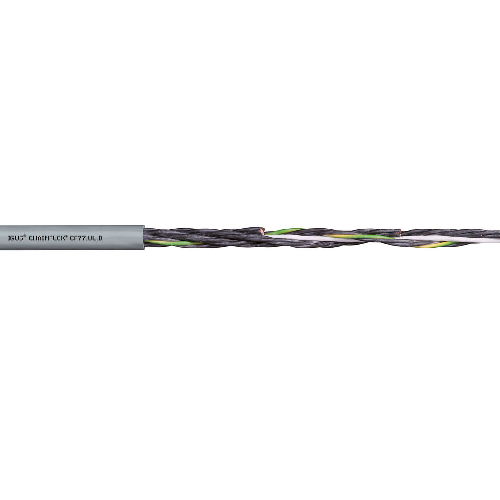

Chainflex Control Cable CF77-UL-D

Typical application areas:

• For heavy duty applications
• Almost unlimited resistance to oil
• Indoor and outdoor applications with average solar radiation
• Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications
• Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas

Construction:

• Conductor: Conductor consisting of bare copper wires (according to DIN EN 60228)

• Conductor Insulation: Mechanically high-quality TPE mixture

• Conductor Construction:
Number of conductors < 12: Conductors cabled in a layer with short pitch length.
Number of conductors ≥ 12: Conductors combined in bundles and stranded together around a high-tensile strength core, using short pitch directions for a low-torsion cable structure

• Outer Jacket: Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in E-Chains (following DIN EN 50363-10-2).

• Color code:
24-22 AWG Color code in accordance with DIN 47100.
20-4 AWG Black with white numbers, one conductor green-yellow.

Properties and Approvals:

• UV Resistance: Medium
• Oil Resistance: Oil-resistant (following DIN EN 50363-10-2), Class 3
• Offshore: MUD-resistant following NEK 606 - status 2009
• Flame Retardant: According to IEC 60332-1-2, FT1, VW-1
• Silicone-free: Free from silicone which can affect paint adhesion (following PV 3.10.7 – status 1992)
• Halogen-free: Following DIN EN 60754
• UL Verified: Certificate No. B129699: igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year
• UL/CSA AWM: See data sheet for details  www.igus.com/CF77-UL-D
• NFPA 79: Complies to Electrical Standard for Industrial Machinery NFPA 79 Section 12.9
• DNV-GL: Type approval certificate No. TAE00003X1
• EAC: Certificate No. RU C-DE.ME77.B.00300/19 (TR ZU)
• Reach: In Accordance with regulation (EC) No. 1907/2006 (REACH)
• Lead-free: Following 2011/65/EC (RoHS-II/RoHS-III)
• Cleanroom: According to ISO Class 1, material/cable tested by IPA according to DIN EN ISO standard 14644-1
• DESINA: According to VDW, DESINA standardization
• CE: Following 2014/35/EU

Specification:

AWG Size: 17
Number of Conductor: 2
Rated Cross Section: 1.0 mm²
Conductor: Bare Copper
Insulation: TPE
Jacket: PUR
Shielding Type: Unshielded
Outer Diameter: 0.26 inch
Copper Index: 14.1 lbs/mft
Voltage: 24-22 AWG: 300 V 20-6 AWG: 1000 V
Weight: 34.3 lbs/mft
Part Number: CF77-UL-10-02-D
