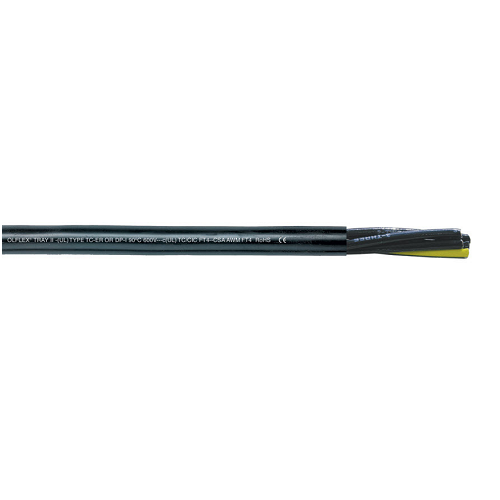

14 AWG 4 Cores FLEX-TC UL/CSA/CE BC PVC 600/1KV VFD Cable 1561404

14 AWG 4 Cores FLEX-TC UL/CSA/CE BC PVC 600/1KV VFD Cable 1561404

Allowable Ampacity for 14 AWG 4 Cores FLEX-TC UL/CSA/CE BC PVC 600/1KV VFD Cable 1561404: 100 Amps

Also Known as:

Mueller Cable, PVC power Cable, Bare Copper Cable, Ground Wire Cable, FLEX-TC Cable, 1561404

Description:

FLEX-TC is a flexible, oil-resistant, UV-resistant industrial grade tray power cable rated 600/1000V for all machinery in tool and plant construction. It is recommended for under-ground installation and open, unprotected installation from the cable tray to the machine and in industrial plants. Suitable in dry, damp and wet environments.

Construction:

• Bare copper conductor, fine wire stranded with AWG dimensions
• Special PVC core insulation with transparent nylon skin
• Black cores with continuous white numbering
• Green-yellow ground wire in the outer layer (only products with 3 conductors or more)
• Cores stranded in layers with optimal lay-lengths
• Specially formulated TPE outer jacket
• Jacket color – black (RAL 9005)
• Sequential footage marking
• Extremely oil-resistant
• UV-resistant

Technical:

• PVC power cable according to UL Standard 1277
• Flexing temp: -25º C to +105º C
• Static temp: -40º C to +105º C
• Bending radius: 4 x Ø
• Working voltage: 600/1000 volts
• Test voltage: 2000 volts

Approvals:

• UL NFPA 79, TC-ER, Class 1 Div. 2 per NEC Art. 501, DP-1, MTW, 90º Dry / 75º Wet, WTTC 1000V, Crush impact test in accordance with UL 1277, Oil Res I/II
• CSA AWM I/II A/B FT4, c(UL) CIC-TC FT4
• CE Low Voltage Directive 2014/35/EU
• RoHS Compliant

Specification:

• Size AWG: 14
• Number of Stranded: 2,50mm2
• Number of Cores: 4
• Nominal OD: 0.392'' Inch
• Nominal OD: 10.0 mm
• CU Weight: 65 LBS/MFT
• Weight 1000ft: 106 LBS/MFT
• Part Number: 1561404
