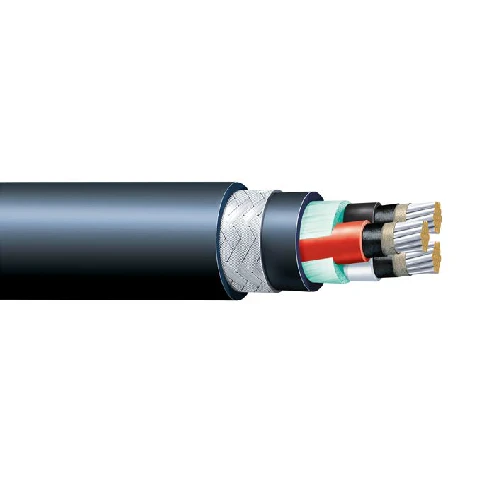

3 Cores 16 mm² JIS C 3410 0.6/1KV FR(FA-)TPYCY Shipboard Fire Resistant Power Cable

• • No. of Cores : 3
• • Conductor Nominal Area : 16 mm²
• • Conductor Strand : 7/1.70 No./mm
• • Conductor Dia. : 5.10 mm
• • (FA-)3TPYCY Nominal Dia. : 26.0 mm
• • (FA-)3TPYCY Tolerance : 1.0 ±mm
• • Conductor Resistance (at 20°C) (Max) : 1.16 Ω/km
• • Insulation Resistanc e (at 20°C) (Min) : 500 ㏁ - km
• • Cable Weight : 0.7831

3 Cores 16 mm² JIS C 3410 0.6/1KV FR(FA-)TPYCY Shipboard Fire Resistant Power Cable

Allowable Ampacity For 3 Cores 16 mm² JIS C 3410 0.6/1KV FR(FA-)TPYCY Shipboard Fire Resistant Power Cable : 100 Amps

Application Standard:

• • Design Guide : JIS C 3410(2010)
• • Flameretardant : IEC 60332-1
                               : IEC 60332-3 Category A (FR-FA-Cables Only
• • Fireresistant : IEC 60331-21 & IEC 60331-1, -2 (120minute)
• • Cold Bend/Impact : CSA 22.2 No. 03 (-40℃/-35℃) (Cold Type Only)
• • Max. Rated Conductor Temperature : 90℃

Also Known As:

Shipboard Cable, JIS C 3410 0.6/1KV FR(FA-)TPYCY, Galvanized Steel, Flame Retardant Cable, PVC Cable, Tinned Annealed Copper

Construction :

Conductor :

• • Code : D, T
• • Stranded tinned annealed copper wires as per JIS C 3410(2010)
• • A suitable tape may be applied on the conductor

Fire Resisting Layer :

• • Code : FR-(FA-)
• • Mica/Glasstape

Insulation :

• • Code : P
• • EPR As Per JIS C 3410(2010)

Cabling :

• • Insulated Conductors Shall Be Cabled.
• • Flame Retardant & Non-Hygroscopic Fillers May Be Used.
• • Suitable Tape(s) May Be Applied On The Cabled Core.

Sheath :

• • Code : Y
• • PVC As Per JIS C3410(2010)

Armour :

• • Code : C
• • Braid Of Galvanized Steel Wire(C)
• • Coverage Density : Min. 90%

Paint :

• • The White Paint Shall Be Painted Uniformly On The Steel Wire Braid
• • In Case Of PVC Protective Covering Cable, Paint Isdispensable.

Protective Covering :

• • Code : Y
• • PVC as per JIS C3410(2010)
• • Protective Covering Color : Black
• • Any Other Color May Be Applicable When Purchaser Required.

Core Identification :
