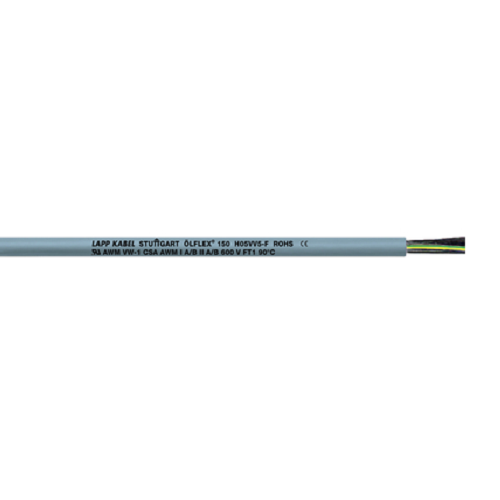

Specification
Number of Cores and mm² per Conductor: 5 G 0.5
Outer diameter: 0.2913 Inches
Copper index: 0.0161 Lbs
Weight: 0.0585 Lbs
Article number: 0015005
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
Benefits:
• Wide application range due to multiple certifications
Application range:
• Plant engineering
• Industrial machinery
• Heating and air-conditioning systems
• Machine tools
• Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
• For fixed installation under medium mechanical load conditions, and applications with occasional flexing at free, noncontinuously recurring movement without tensile load or compulsory guidance
• Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 Ed. 2015: please see the catalogue appendix table T29
Product features:
• Flame-retardant according to IEC 60332-1-2 and UL 1581 §1061 Cable Flame Test
• Oil-resistant according to EN 50363-4-1: TM5
Norm references / Approvals:
• H05VV5-F (EN 50525-2-51)
• UL AWM Style 21098
• CSA AWM I A/B II A/B
• Multi-standard cables have conductor strands with nominal sizes in mm² or AWG/kcmil. The master size is mentioned in the table below, while the equivalent size of the other system can be found in the Appendix T16 of this catalogue. For this related secondary size the cross-section of the conductor mostly works out to be greater than the specified nominal value.
Product Make-up:
• Fine-wire strand made of bare copper wires
• PVC core insulation
• Cores twisted in layers
• PVC outer sheath, high oil-resistance, grey (similar to RAL 7001)
Technical Data:
• Classification ETIM 5: ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable
• Classification ETIM 6: ETIM 6.0 Class-ID: EC000104
ETIM 6.0 Class-Description: Control cable
• Core identification code: Black with white numbers acc. to VDE 0293-1
• Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5
• Minimum bending radius: Occasional flexing: 12.5 x outer diameter
Fixed installation: 4 x outer diameter
• Nominal voltage: HAR U0/U: 300/500 V
UL/CSA: 600 V
• Test voltage: 3000 V
• Protective conductor: G = with GN-YE protective conductor
X = without protective conductor
• Temperature range: Occasional flexing:
HAR: -5°C to +70°C
UL/CSA: +90°C
Fixed installation:
HAR: -40°C to +70°C
UL/CSA: +90°C
