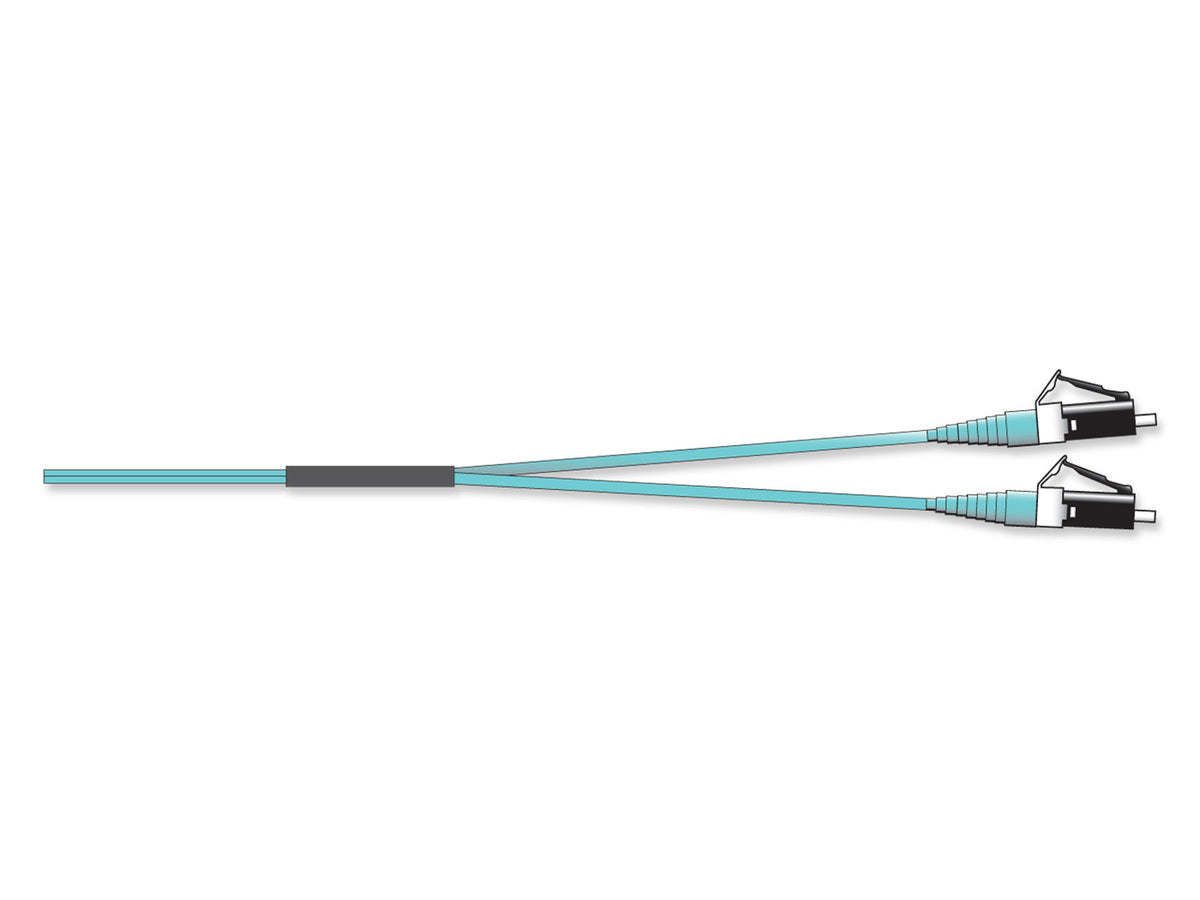

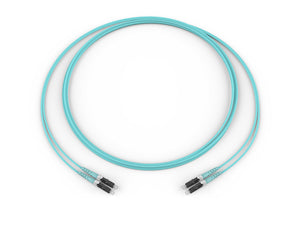

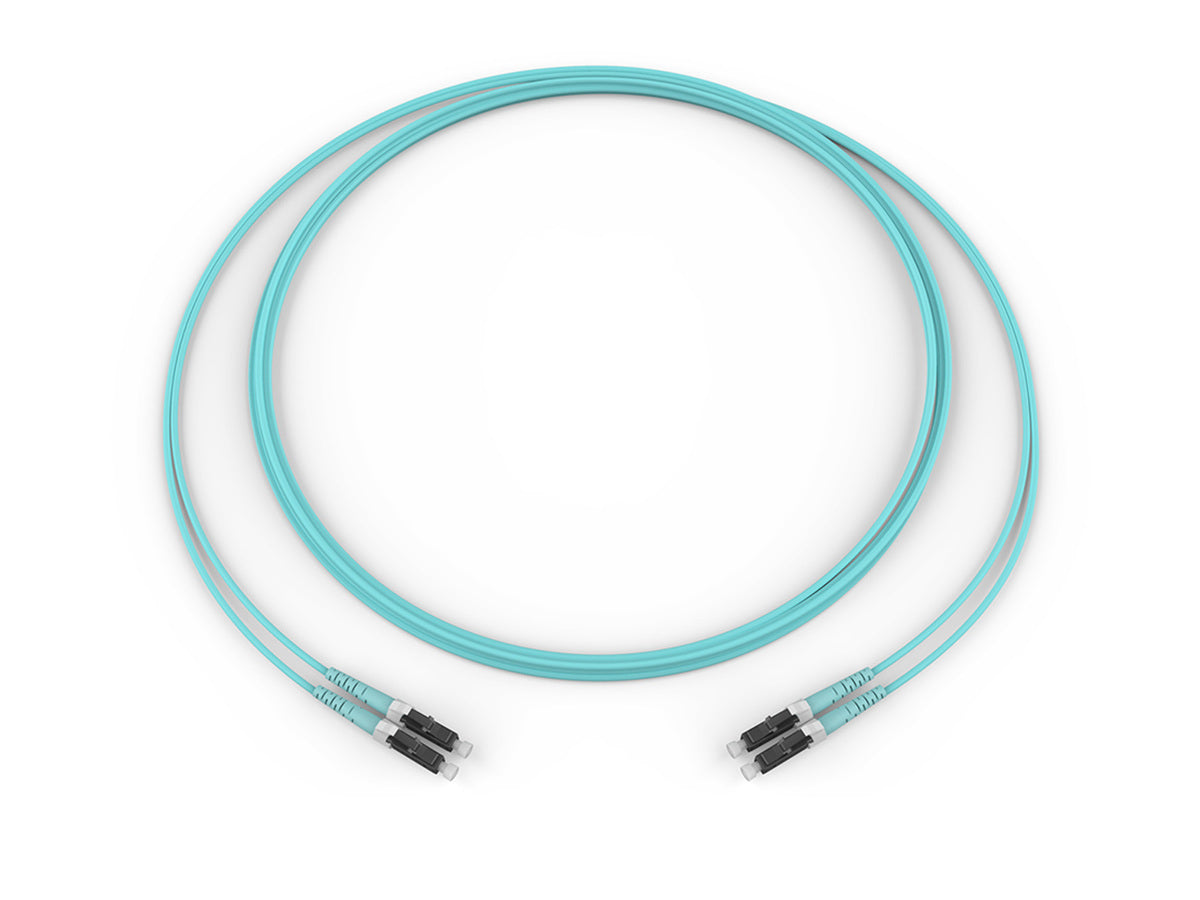

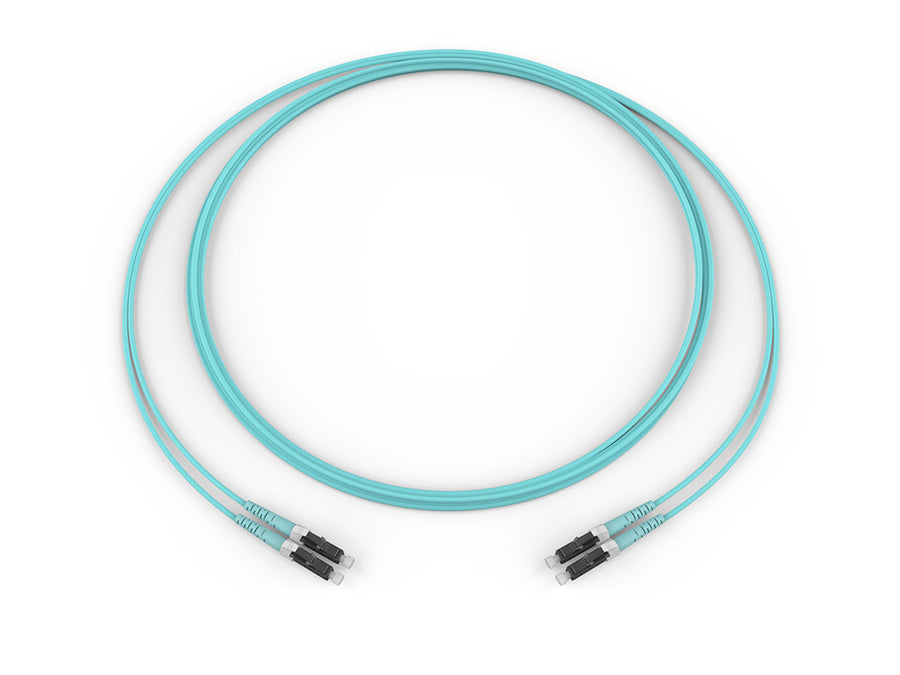

Fiber Optic Jumper 2 F Zipcord Cable Riser 2.0 mm legs Standard LC-LC Duplex MM OM3 50um Aqua 3 Meters Corning 050502T5120003M

Where are we? 4 Continents 9 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Cable Type | Tight-Buffered |
Cable Assembly Type | Two Fiber |
Application | Vertical Riser, General Building Applications |
Flame Rating | Riser (OFNR) |
Fiber Count | 2 |
Outer Jacket Color | Aqua |
Fiber Code | T |
Fiber Type | Multimode |
Performance Option Code | 80 |
Fiber Core Diameter | 50 µm |
Fiber Category | OM3 |
Part Number | 050502T5120003M |
Connectors A & B
Insertion Loss, Typical | 0.35 dB |
Boot Color | Aqua |
Connector Type | LC duplex |
Ferrule Material | Ceramic |
Housing Color | Black |
Housing Material | Composite |
Description
Two-fiber cable assemblies are available with a variety of connector and cable combinations. RoHS-compliant zipcord, DFX®, MIC®, Fan-out, and RIC cables are also available. Additional detailed furcation images are available in the cable assembly family specification sheet.
Features and Benefits
Flame-retardant jacket
Rugged and durable
Superior Performance Testing
Every termination is tested to ensure the highest network performance
State-Of-The-Art Manufacturing Processes
Corning's proprietary manufacturing processes and advanced technology results in unsurpassed product consistency
Corning advantage
Integrated developer and manufacturer of cable, connectors, and fiber to ensure overall cable assembly performance.
Download PDF Spec Sheet
