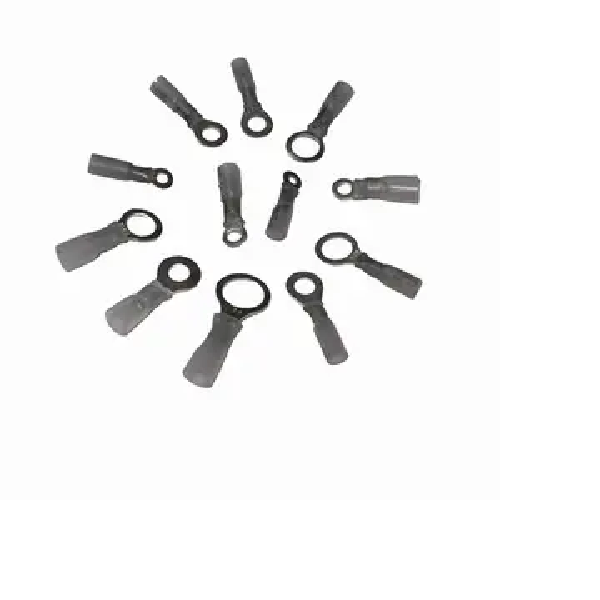

Burndy YHSA10K14 12 - 10 AWG 1/4" Stud 1 Hole Tin-Plated Copper Heat Shrink Ring Tongue Terminal Lug

Burndy YHSA10K14 12 - 10 AWG 1/4" Stud 1 Hole Tin-Plated Copper Heat Shrink Ring Tongue Terminal Lug
Roll over image to Zoom

Burndy YHSA10K14 12 - 10 AWG 1/4" Stud 1 Hole Tin-Plated Copper Heat Shrink Ring Tongue Terminal Lug

SKU:

Select a Variant

Burndy YHSA10K14 12 - 10 AWG 1/4" Stud 1 Hole Tin-Plated Copper Heat Shrink Ring Tongue Terminal Lug
Price:
Los gastos de envío se calculan en la pantalla de pagos.
La cantidad debe ser 1 o más

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Burndy YHSA10K14 12 - 10 AWG 1/4" Stud 1 Hole Tin-Plated Copper Heat Shrink Ring Tongue Terminal Lug

Also Known as :

Burndy Connector, Heat Shrink Ring Tongue, Power Connectors, Ring Tongue, Terminal Lug, YHSA10K14

Description :

Cu Heat Shrink Terminal, Ring Tongue, 10-12 AWG, 1/4" Stud, 1.45" L, 0.56"
W, Serrated bbl, Tin plated, For Use On Cu Cond.

Features:

Made From Pure Copper, Annealed For Maximum Strength, Color-Coded, Imprinted With Wire Size, Serrated Barrels Offer Maximum Wire Contact And Tensile Strength, Electro Tin Plated For Corrosion Resistance, Wire Strip Length 5/16 IN, Wire Strip Length: 5/16 IN, Finish: Electro-Tin Plated, Package: 100/Bag

Conductor:

• Copper Str Size Range: 12 AWG - 10 AWG
Conductor Type: CU C Str-Size

Certifications and Compliance:

• CSA Approved: No
 ETL: No
• UL Recognized: No
 cULus: No
• Standards: RoHS Compliance Status: CM
• UL Listed: No

Specification :

• Conductor Type: Terminal
• Stud Size: 1/4 inches
• Color Code: Black
• EU RoHS Indicator: Yes
• Finish Type: Electro-Tin Plated
• Material: Copper
• Tongue Type: Ring
 Plated: Y
• Plating Type:  Tin
• Dimension (Length Overall): 1.15 inches
• Dimension (Pad Width): 0.56 inches
• Dimension (Strip Length): 5/16 inches
Dimension - Stud Size inch: 1/4
• Dimension (N): 0.15 inches
 Physical Attribute: Straight
 Part Number: YHSA10K14
• UPC: 781810477021
• UPC 12 Digit: 7818104770211
