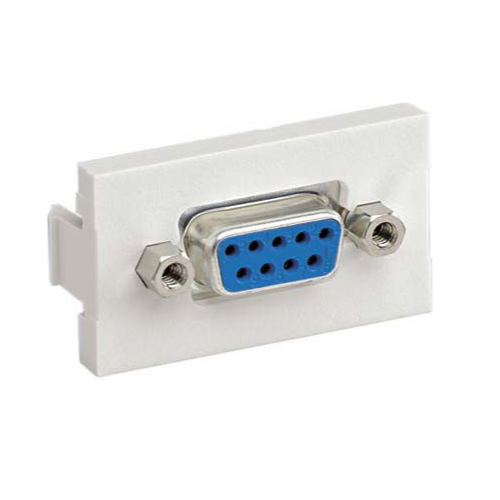

9 Pin Pan-Net HD VGA 1/3 Insert Coupler Female/Female CHD9CIGY

9 Pin Pan-Net HD VGA 1/3 Insert Coupler Female/Female CHD9CIGY
Roll over image to Zoom

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Also Known As :

• 9-Pin VGA Coupler Insert
• HD VGA Female-to-Female Connector
• VGA Extension Adapter
• Mini VGA Coupler for Faceplates

About:

The CHD9CIGY is a 9-pin HD VGA 1/3 insert coupler designed to facilitate the extension of VGA connections by joining two VGA cables. It's compact, ensuring it fits neatly into faceplates and enclosures while maintaining the integrity and quality of the VGA signal.

Specification:

Note Includes 9 pin HD VGA coupler
Sub Brand Pan-Net®
Product Type VGA Insert
Material ABS
Outlet Orientation Flat
Color International Gray
Overall Width (In.) 1.64
Overall Width (mm) 41.66
Overall Depth (In.) 0.7
Overall Depth (mm) 17.78
Overall Height (In.) 0.89
Overall Height (mm) 22.61
Mount Method Snap In
Standards Met RoHS Compliant
Part No: CHD9CIGY



Common Applications:

• Corporate Environments: Used to extend connections to projectors, monitors, and other display systems in meeting rooms and offices
 Educational Institutions: Facilitates extended connectivity for interactive boards, projectors, and computer monitors in classrooms
 Residential Settings: Ideal for home theater systems requiring extended VGA connections
 Retail and Commercial Displays: Helps in setting up display monitors and digital signage

Features:

• Ease of Installation: Designed for user-friendly installation, easily fitting into faceplates and enclosures
• Signal Integrity: Ensures the quality of the VGA signal is maintained, supporting HD transmissions
• Durability: Built with materials that are durable and resistant to wear, ensuring long-term use
• Compact Design: The 1/3 insert size allows for a neat installation, saving space and maintaining aesthetics

Standards:

 Quality Standards: Built to meet quality standards ensuring durability and optimal performance
 Signal Transmission Standards: Meets the requirements to support and maintain the integrity of HD VGA signals
 Safety Standards: Manufactured following safety standards to ensure secure and safe use

Construction:

 Material: Typically constructed with conductive metals and insulating materials that ensure signal quality and durability
 Connector Type: Features a 9-pin HD VGA female-to-female connector, allowing easy connection of two VGA cables
 Design: Compact design ensures it fits neatly into faceplates and enclosures, maintaining a tidy and organized look
