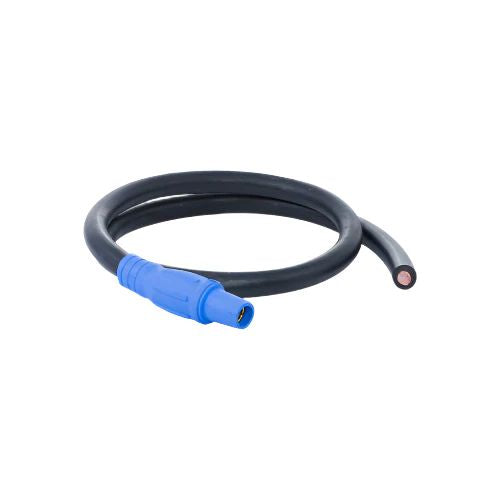

6 AWG Type SC Cable Cam Female Connector to Opposite Bare
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Length | 1' to 10' |
| Connector | Female Connector to Opposite Bare |
| Female Connector | (5) 16 Series Cams |
| Power Conductor Size | 6 AWG |
| Power Conductor Stranding | 258/30 No. of Wires |
| Nominal Jacket Thickness | 0.095 inch, 2.41 mm |
| Nominal O.D. | 0.371 inch, 9.4 mm |
| Ampacity (A) | 105 |
6 AWG Type SC Cable Cam Male Connector to Opposite Bare
Description
6 AWG Cam Lock SC Cable Assembled with UL and c(UL) listed SC cable made from annealed no. 30 gauge bare copper stranding.
Features
• Every 24" with heavy-duty glued shrink.
• Durable CPE insulation.
• Meets/exceeds flame test requirements of UL and c(UL)
• Resistant to sunlight, water, ozone, abrasion, acids, heat, flame, and chemicals.
• Excellent flexibility and durability.
Options
‣ Carrying straps.
‣ Custom lengths.
‣ Custom cable identification.
