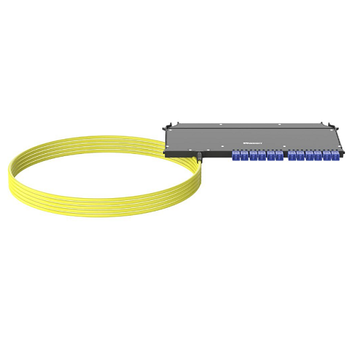

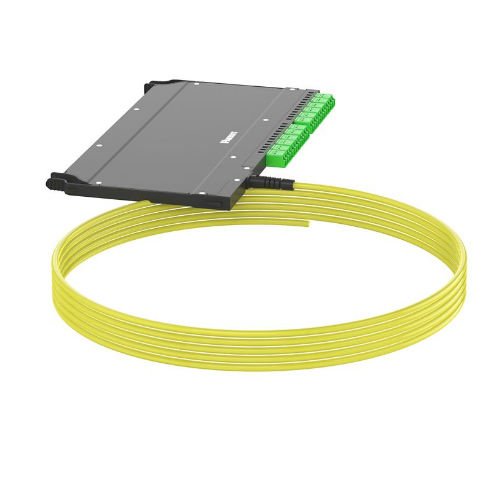

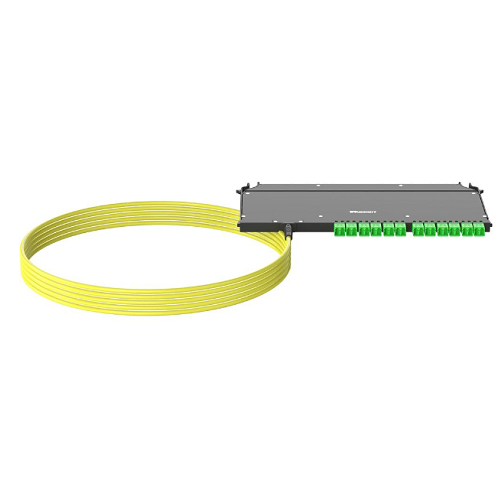

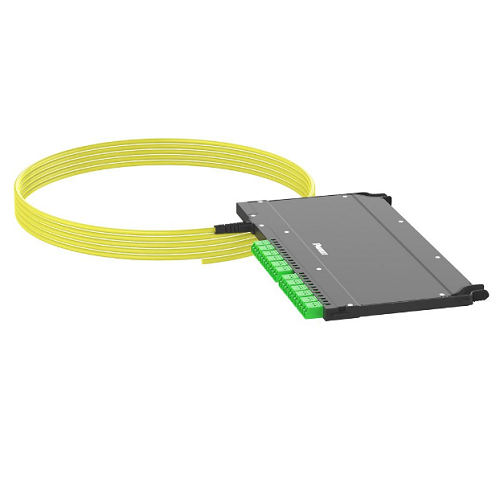

50Ft 24 Fiber FlexCore Front Access Optic LC/APC Cassettes Left Side MPO F9UYPZLNNSNF050

Where are we? 4 Continents 8 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
About:
• Type: FlexCore Front Access ODF Fiber Optic Cassette.
• Fiber Mode: Likely to be Singlemode (OS2) given the LC/APC connector type.
• Fiber Count: 24 fibers, with LC Duplex to 2xMPO-12 configuration.
• Orientation: Left-hand orientation for cable entry and exit.
• Length: 50 feet, indicating the length of the cabling.
Also Known As:
• Typically referred to by its model number (F9UYPZLNNSNF050) or as a "Front Access Fiber Optic Cassette."
• No widespread alternative names are commonly used.
Common Applications:
• Data Centers: For high-density fiber management and connectivity.
• Telecommunication Networks: In telecom rooms for efficient fiber routing.
• Enterprise Networking: Suitable for structured cabling systems in commercial buildings.
Standards Met:
ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS 2002/95/EC compliant, supports IEEE802.3 and ANSI T11.2 (Fiber Channel)
Construction:
• Fiber Type: Singlemode fibers are often used for long-distance, high-speed transmission.
• Connectors: LC/APC connectors for reduced back reflection and MPO for high-density applications.
• Cassette Material: Durable materials for protection and ease of access.
Features:
• High Fiber Density: Accommodates a significant number of fibers in a compact space.
• Efficient Cable Management: Designed for easy handling and minimal cable clutter.
• Versatile Connectivity: Supports a variety of fiber optic networking standards and configurations.
Specification:
Fiber Type: | OS1/OS2 |
Connection Type: | LC |
Number of Fibers: | 24 |
Connector 1 Type: | LC Duplex |
Adapter Color: | Blue |
Maximum Connector Insertion Loss (dB): | 0.35 |
Minimum Connector Return Loss (dB): | 55 |
Overall Width: | 11.53 In. (292.8 mm) |
Overall Depth: | 6.75 In. (171.5 mm) |
Overall Height: | 0.46 In. (11.7 mm) |
Color: | Black |
Fiber Diameter (µm): | 9 |
Flammability Rating: | Plenum |
Part No: | F9UYPZLNNSNF050 |
Download PDF Spec Sheet
