500A Shore Power Receptacle w/ 10ft THOF-400 Cable 2003-05E-104

Product Information

Specification

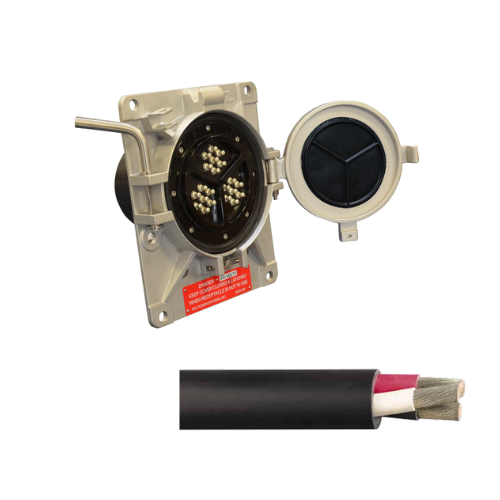

Please note that the image is for reference only; the actual product may vary.

About:

Ship/shore connectors with 10 feet THOF-400 Cable are ruggedly designed for quick, easy, and safe connection of docked ships to shore-generated power. Designed to mate with MIL-C-24368/1 shore power plugs, it is available with optional factory-installed cable pigtails or a cable potting kit for field termination. Featuring an integral microswitch for upstream control and alarms, its electropolished 316 stainless steel housing and watertight cover provide superior durability and protection in harsh marine environments.

Approvals: QPL 24368 listed.

Also Known as:

Shore Power Receptacle, Marine Shore Power Receptacle, Shore Power Plug 500 Amp, Receptacle plug, 500 amp shore receptacle, Shore power adapter, Shore power plug and socket.

Specifications:

Government Designation: M24368/2-104
Amperage: 500 A
AC: 500 Volt
Part Number: 2003-05E-104

Cable specifications:

Length: 10 feet
Cable: THOF-400
AWG Size: 400
No. of Conductors: 3
Solid/Stranded: Stranded
Cond. Material: Bare Copper
Jacket Material: Chlorinated Polyethylene
Mil Spec: M915E/65
Max O.D. (in): 2.80
Voltage: 600
Insulation: Ethylene Propylene Rubber (EPR), 0.095” min average thickness

Features:

• MMIL-C-246368 US Navy & NATO standard for vessels & port facilities
• Mates with MIL-C-24368/1 shore power plugs
• Available with optional cable pigtails factory installed, or cable potting kit for field termination of  customer’s cables
• Integral microswitch provides upstream control and/or alarms
• Electropolished 316 SS housing and watertight cover
• Includes mounting gasket

Other cable types are available upon request based on customer needs.
