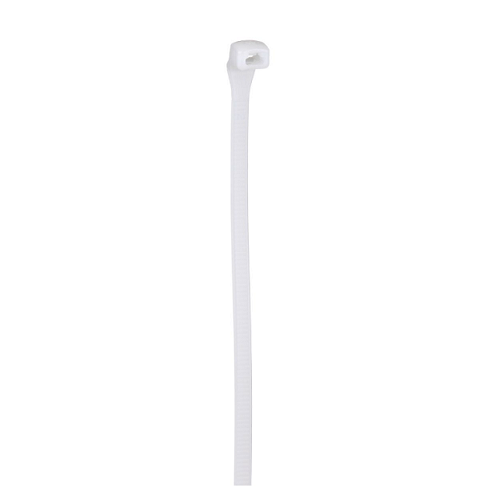

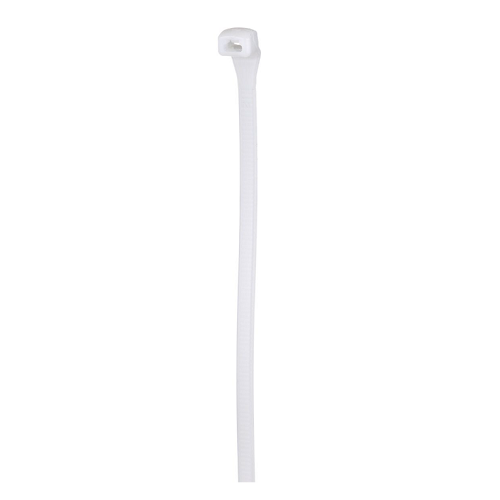

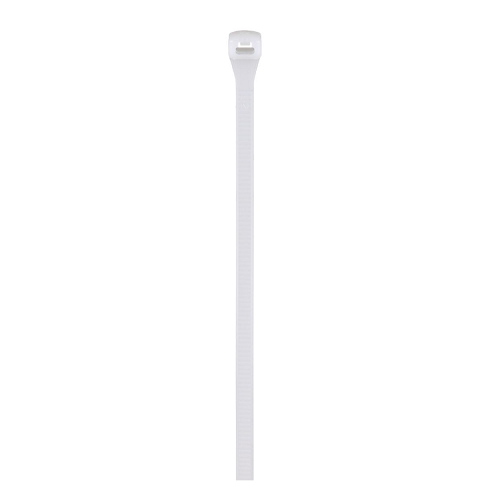

5.8x0.098 Contour-Ty Miniature Cable Tie Plenum Nylon 6.6 CBR1.5M-M (Pack of 1000)

Product Information

Specification

Product Type:	Cable Tie
Sub Brand:	Contour-Ty®
Color:	Natural
Environment:	Indoor
Material:	Nylon 6.6
Overall Length (In.):	5.8 Inches
Body Width (In.):	0.098 Inches
Body Thickness (In.):	0.042 Inches
Maximum Bundle Diameter (In.):	1.5 Inches
Minimum Bundle Diameter (In.):	0.07 Inches
Minimum Loop Tensile Strength (N):	80
Minimum Loop Tensile Strength (lb):	18 Lbs
Maximum Operating Temperature (°C):	85
Maximum Operating Temperature (°F):	185
Minimum Operating Temperature (°C):	-60
Minimum Operating Temperature (°F):	-76
Minimum Installation Temperature (°C):	-20
Minimum Installation Temperature (°F):	-4
Standards Met:	SAE-AS23190A, SAE-AS33671, RoHS Compliant
Military Cross Reference Number:	MS3367-31-9
For Use With:	GTS-E, GS2B-E, PTS, PPTS, STS2
Part No:	CBR1.5M-M

Part Features:

Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength

Contour-Ty Cable Ties – Nylon 6.6:

• For indoor use
• Unique design prevents wire and cable damage

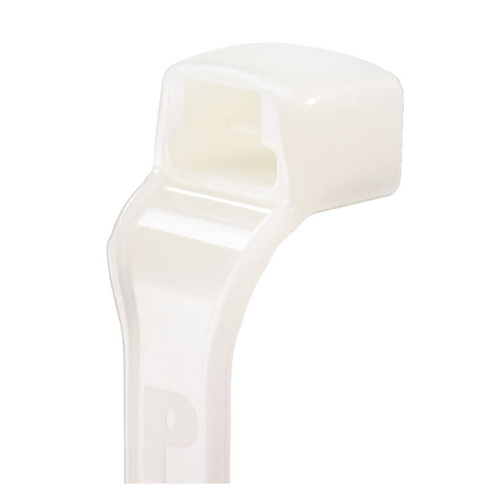

• Low profile head avoids snags and reduces overall bundle size
• Outside teeth and smooth round edges protect cable jacket – ideal for high vibration applications
• Parallel-entry limits exposure to sharp edges and protects Worker's arms/hands
• Fully enclosed head for consistent strength
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
• UL Listed for use in plenum or air handling spaces per NEC
• Nylon 6.6 cable ties in natural and colors meet the testing requirements of SAE Aerospace Standard AS23190 and the dimensional requirements of SAE Aerospace Standard AS33671
