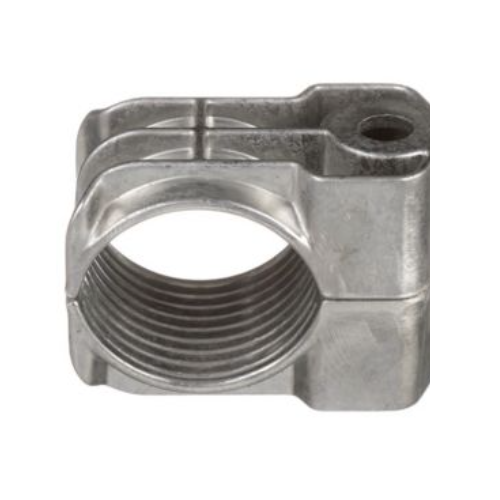

38-46mm Cable Cleat Aluminum M10 Mounting 1Hole Clamp CCAL1H3846-X (Pack of 10)
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
| Product Type | Aluminum Cable Cleat |
| Color | Natural |
| Environment | Indoor/Outdoor |
| For Use With | Single cables w/a cable diameter of 38-46mm |
| Material | Aluminum |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Resistance Properties | Flame-Resistant |
| Standards Met | IEC 61914:2015 |
| Part No: | CCAL1H3846-X |
Description:
The Aluminum One-Hole Cleat is ideal for lower to medium short circuit faults in less corrosive environments. It is available in multiple sizes with cable range-taking capability and is suitable for single conductor cables. The cleat is installed direct to the cable tray rung via a fixing hole and M10 bolt. Insulating spacers and washers are available to protect against galvanic corrosion in case of dissimilar cable tray rung and cable cleat materials.
Features:
• Cleats comply with IEC 61914:2015 standard. Tested at third party laboratory
• Cast aluminum material
• Operating temperature -40°C to +120°C (-40°F to +248°F)
• 10 – 57 mm cable diameter range-taking via 7 parts. Custom sizes available upon request
• Dual bolt fixing (M10)
• Rounded aluminum edges for cable insulation protection
• Ridges help hold cable in place
• Available insulating spacers and washers
• Interlock feature prevents rotation between top and bottom pieces of cleat
Download PDF Spec Sheet
