300 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV

300 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV

Application:

• DRILMAR LS cables are used for the distribution of power in circuits rated for 600/1000 volts.
• Typical applications include: D/C motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.

Also Known As:

300 mm² Offshore drilling cable, Marine power distribution cable 600/1kV, LSZH marine cable, armored power cable, Drilling rig cable, 300 mm² LS armored cable, 300 mm² Marine and rig power cable.

Standards:

• IEC 60092-350
• General construction and test methods of power, control and instrumentation cables for shipboard and offshore applications.
• IEC 60092-351
• Insulating materials for shipboard and offshore units, power, control, instrumentation, telecommunication and data cables.
• IEC 60092-353
• Power cables for rated voltages 1kV and 3 kV.
• IEC 60092-359
• Sheathing materials for shipboard power and telecommunication cables.
• IEC 60092-352
• Electrical installations in ships - Part 352: Choice and installation of electrical cables.
• IEEE 45 - 2002
• Recommended Practice for Electrical Installations on Shipboard Cable, as noted in Clause 23.3 for products manufactured per IEC 60092-350 series.

Approvals:

• Intertek, as Type HF XLPE / SHF1.
• ABS, American Bureau of Shipping.
• LRS, Lloyd’s Register of Shipping.
• DNV, Det Norske Veritas

Features:

• Enginnered for easiest installation.
• Maximum conductor operating temperature:
• 90°C as per IEC.
• Drilmar HF XLPE Insulation:
• Low Smoke and Halogen Free XLPE meeting IEC 60092-351.
• Rated at90°C.
• SHF1 Jacket:
• Low Smoke and Halogen Free Polyolefin metting IEC 60092-359.
• Completed cable offers superior flame resistance meeting:
• IEC 60332-1 and IEC 60332-3- 22 Category A.
• Low Smake as per IEC 61034-2.
• Halogen Free as per IEC 60754-1.

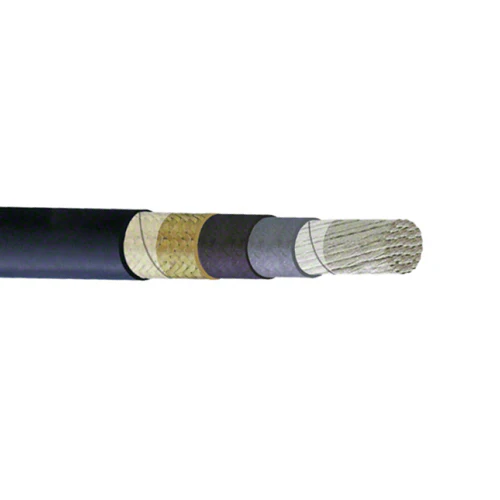

Construction:

• Conductor: Soft annealed flexible Tin Coated Copper, Class 5 as per |EC 60228. Sizes: 1 mm? up to 630 mm2
• Separator Tape: Suitable tape asrequired.
• Insulation: Low Smaoke Halogen Free flame retardant Crosslined Polyethylene (HF XLPE.).
• Jacket (optional): Black Low Smoke Halogen Free flame retardant thermoplastic Polyolefin (SHF1).
• Armor: Tinned Copper Braid.
• Jacket (overall): Black Low Smoke Halogen Free flame retardant thermoplastic Polyolefin (SHF1).

Specifications:

• Conductor Size mm²: 300
• Nominal OD (in): 1.39
• Nominal OD (mm): 35.3
• Net Weight lb/kft: 2560
• Part Number: DSLSSHF-T300-1
