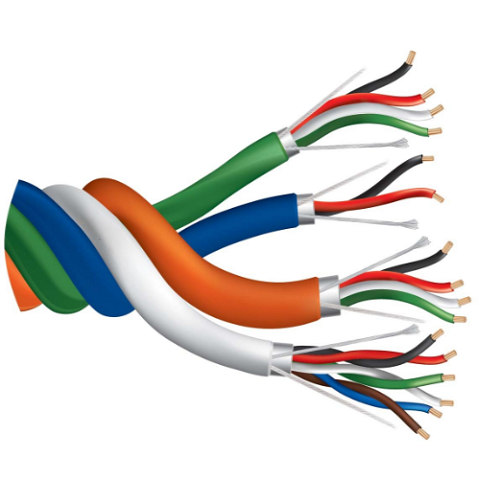

22/6 Shielded + 18/4 + 22/2 + 22/4 Access Control Plenum Cable PVC Jacket 300V

22/6 Shielded + 18/4 + 22/2 + 22/4 Access Control Plenum Cable PVC Jacket 300V

Applications:

Genesis Access Control Cables simplify and expedite wiring of access points by combining individual lock power, door contact, card reader, and request-to-exit cables into a single, easy-to-pull bundle.

Also Known As:

22/6 AWG 300V Access Control plenum cable, Access control plenum rated cable, Plenum cable 300V for security systems, Plenum cable for access control wiring, 300V plenum cable for building systems, Access control wiring 300V plenum, 22/6 AWG Fire-resistant plenum cable 300V, Plenum rated 300V cable for access control, 22/6 AWG 300V fire-resistant access control cable.

Standards:

• NFPA 262 – Plenum Rated
• CSA C22.2 No. 2556 – FT6 Rated
• UL 444 – Communication Cables, Type CMP
• UL 1424 – Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
• UL 13 – Power-Limited Circuit Cables, Type CL3P
• REACH/RoHS Compliant
• Rated for 300 Volts
• Rated for -20°C to 75°C

Construction:

Conductor:
Bare Copper conductors for excellent signal transmission and low voltage drop

Insulation:
Low-Smoke PVC

Rip Cord:
Durable rip cord for efficient jacket stripping and removal

Shield:
Available with card reader component shielded or all component shielded configurations for extra protection in normal or noisy environments

Jacket:
Plenum PVC used for individual components in all configurations and for outer jacket in composite configurations. Countdown Length Markings for easy tracking of usage
and remaining cable

Features:

• In fabricated ducts as described in NEC 300.22(B)
• In other spaces used for environmental air as described in NEC 300.22(C)
• In risers
• Within buildings in other than air-handling spaces and risers

Specifications:

Component : Card Reader
Size: 22 AWG
Number of Conductors: 6
Stranding: 7-strand
Shielding: Shielded
DC Resistance (Ohms/1000ft at 20°C): 16.9
Component : Door Strike
Size: 18 AWG
Number of Conductors: 4
Stranding: 19-strand
DC Resistance (Ohms/1000ft at 20°C): 6.6
Component : Door Contact
Size: 22 AWG
Number of Conductors: 2
Stranding: 7-strand
DC Resistance (Ohms/1000ft at 20°C): 16.9
Component : Request for Exit
Size: 22 AWG
Number of Conductors: 4
Stranding: 7-strand
Outer Jacket Thickness (in): 0.013
Nominal Diameter (in): 0.371
DC Resistance (Ohms/1000ft at 20°C): 16.9
Weight (lbs/1000ft): 87.7
