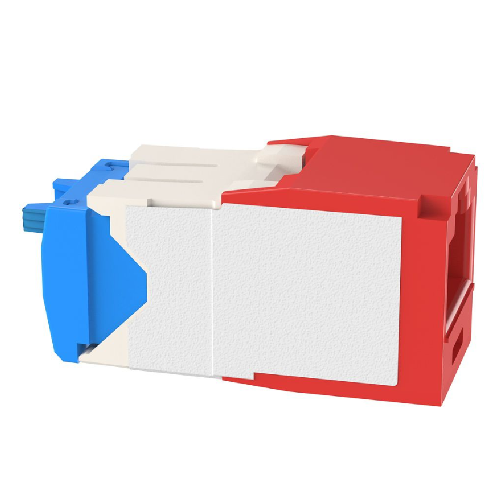

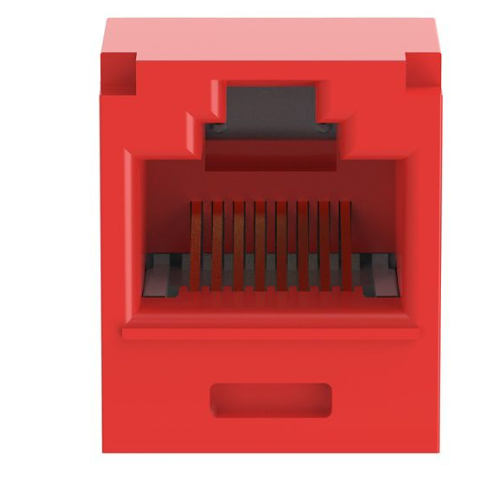

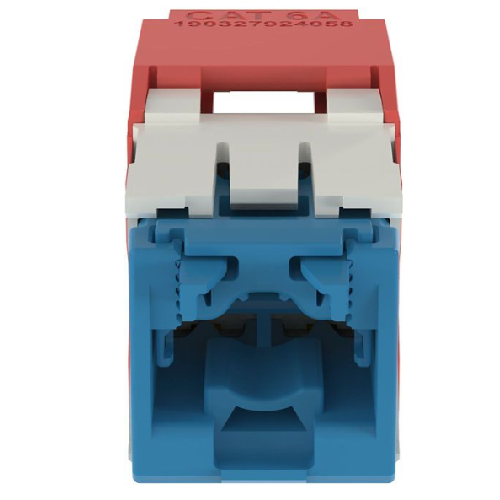

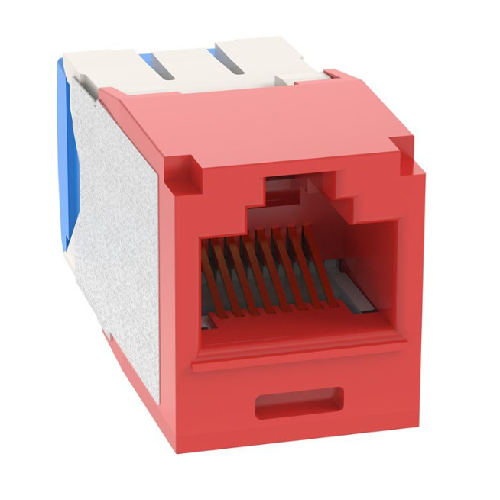

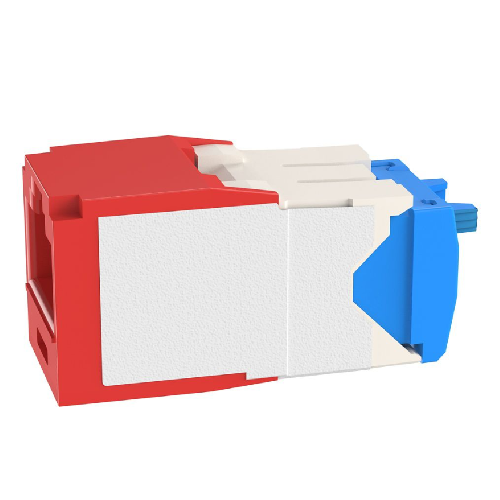

22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD

22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD
Roll over image to Zoom
22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD
Roll over image to Zoom
22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD
Roll over image to Zoom
22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD
Roll over image to Zoom
22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD
Roll over image to Zoom

22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD

SKU: CJ6X88TGRD

Select a Variant

22-26 AWG Mini-Com RJ45 TG Style Cat6A 10Gig UTP Jack Module Polycarbonate CJ6X88TGRD

Availability: In stock

Price:
Precio habitual
$23.62
Precio de oferta
$19.68
Los gastos de envío se calculan en la pantalla de pagos.
La cantidad debe ser 1 o más

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Also Known As:

This product can also be referred to by its model number (CJ6X88TGRD). part number, or simply as a Cat6A RJ45 jack module suitable for 22-26 AWG cables.

About:

The CJ6X88TGRD is a high-performance RJ45 jack module designed to support 10Gig Ethernet applications. It is made of durable polycarbonate and designed for easy, toolless installation, making it a practical choice for various high-speed network installations.

Specification:

Product Type Jack Module
Performance Level Category 6A
Connector Type Jack Module - Standard
Termination Style TG Style
Body Material Polycarbonate
Contact Material Plated Phosphor Bronze
Module Type Mini-Com®
Wiring Scheme T568A/T568B
Shield Type Unshielded (UTP)
Sub Brand Pan-Net®
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 75
Maximum Storage Temperature (°F) 167
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Resistance Properties Heat-Resistant
Color Red
Overall Depth (In.) 1.5
Overall Depth (mm) 38.1
Overall Height (In.) 0.71
Overall Height (mm) 18
Overall Length (In.) 1.5
Overall Length (mm) 38.1
Overall Width (In.) 0.63
Overall Width (mm) 16
Part No: CJ6X88TGRD



Common Applications:

• Data Centers: For high-speed data transfer and reliable connectivity.
• Enterprise Networks: In office environments requiring high-speed, reliable internet connections.
• Educational Institutions: To support digital learning platforms and internet access.
• High-Performance Computing: In environments requiring optimal network performance.

Features:

• High-Speed Performance: Designed to support 10Gig Ethernet applications.
• Toolless Installation: Easy and quick installation without specialized tools.
• Durable Material: Made with polycarbonate for enhanced durability.
• Versatile: Compatible with 22-26 AWG cables, offering installation flexibility.

Standards:

The CJ6X88TGRD typically adheres to industry standards to ensure compatibility, performance, and safety, such as:

Performance Standards:
TIA/EIA-568-C.2, ISO/IEC 11801 for Cat6A performance.
Safety and Environmental Standards: RoHS compliant, ensuring that the product is free from hazardous materials.

Construction:

 Housing: Durable polycarbonate housing to protect the internal components.
 Contacts:
Often features gold-plated contacts for optimal signal transmission and corrosion resistance.
• Termination Cap:
Helps in managing cable bend radius and provides strain relief.

Download PDF Spec Sheet
