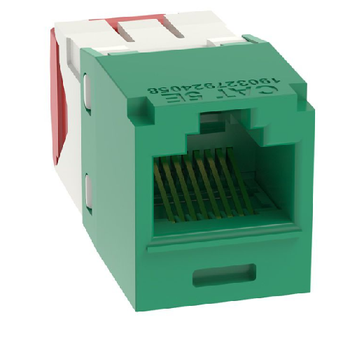

22-26 AWG Mini-Com RJ45 TG Style Cat5e Plus UTP Jack Module Polycarbonate CJ5E88TGAW

Where are we? 4 Continents 8 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
Also Known As:
The 22-26 AWG Mini-Com RJ45 TG Style Cat5e Plus UTP Jack Module Polycarbonate CJ5E88TGAW can also be referred to as a Cat5e Plus RJ45 jack, Ethernet jack, or network jack, identifiable by its specific model number and its compatibility with 22-26 AWG wire sizes and tool-less design.
About:
The CJ5E88TGAW is an advanced, tool-less RJ45 jack module engineered for optimal performance, ease of installation, and durability. Crafted from sturdy polycarbonate and designed for Cat5e Plus UTP cables, it's compatible with a wider range of wire gauges from 22 to 26 AWG, offering enhanced versatility and performance in various networking environments.
Specification:
Product Type | Jack Module |
Performance Level | Category 5e |
Connector Type | Jack Module - Standard |
Termination Style | TG Style |
Body Material | Polycarbonate |
Contact Material | Plated Phosphor Bronze |
Module Type | Mini-Com® |
Wiring Scheme | T568A/T568B |
Shield Type | Unshielded (UTP) |
Sub Brand | Pan-Net® |
Maximum Operating Temperature (°C) | 75 |
Maximum Operating Temperature (°F) | 167 |
Minimum Operating Temperature (°C) | -10 |
Minimum Operating Temperature (°F) | 14 |
Maximum Storage Temperature (°C) | 75 |
Maximum Storage Temperature (°F) | 167 |
Minimum Storage Temperature (°C) | -40 |
Minimum Storage Temperature (°F) | -40 |
Resistance Properties | Heat-Resistant |
Color | Arctic White |
Overall Depth (In.) | 1.5 |
Overall Depth (mm) | 38.1 |
Overall Height (In.) | 0.71 |
Overall Height (mm) | 18 |
Overall Length (In.) | 1.5 |
Overall Length (mm) | 38.1 |
Overall Width (In.) | 0.62 |
Overall Width (mm) | 15.7 |
Part No: | CJ5E88TGAW |
Common Applications:
• Enterprise Networks: Ideal for establishing connections within large corporate offices, supporting workstations, servers, and various networked devices.
• Home Networks: Versatile and easy to install, making it suitable for connecting PCs, gaming consoles, smart home devices, etc.
• Data Centers: Preferred for establishing reliable, high-speed connections among servers, routers, and switches.
• Institutional Networks: Often used in schools, colleges, and universities for connecting computers, lab equipment, and other digital devices.
Features:
• Tool-less Installation: Enables quick and hassle-free installations without specialized tools, reducing setup time.
• Enhanced Performance: The Cat5e Plus specification ensures superior performance over standard Cat5e, supporting higher data rates and frequencies.
• Durable Polycarbonate Construction: Ensures robustness, impact resistance, and longevity.
• Versatile Compatibility: Supports a broader range of wire gauges, offering installation flexibility.
• Universal Wiring: Compatible with both T568A and T568B wiring standards, accommodating diverse networking requirements.
Standards:
• TIA/EIA-568-C.2: Likely complies with this standard, ensuring enhanced performance and reliability for Cat5e connections.
• ISO/IEC 11801: Expected to meet international standards governing data communications and structured cabling systems.
• RoHS Compliant: Manufactured without hazardous materials for eco-friendly operation.
Construction:
• Polycarbonate Housing: Provides a sturdy, impact-resistant enclosure, ensuring the internal components are well-protected.
• TG Style Connector: Allows for easy, tool-less installation and secure connections, enhancing setup efficiency.
• Enhanced Internal Wiring: Designed to minimize crosstalk and interference while maximizing signal integrity and performance.
• Color-Coded Terminals: May feature color-coded terminals for easy identification and wiring, ensuring correct and reliable installations.
Download PDF Spec Sheet
