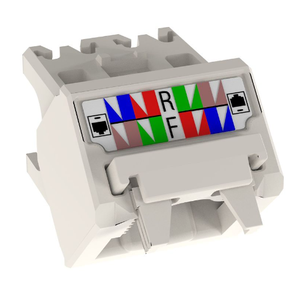

22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C

22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C
Roll over image to Zoom
22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C
Roll over image to Zoom
22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C
Roll over image to Zoom
22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C
Roll over image to Zoom
22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C
Roll over image to Zoom

22-26 AWG Mini-Com Cat6 Up/Down 45 Angle Wire Cap Jack Module TG UTP CJUDCAPIW-C

SKU: CJUDCAPIW-C

Availability: In stock

Price:
Precio habitual
$1.61
Precio de oferta
$1.34
Los gastos de envío se calculan en la pantalla de pagos.
La cantidad debe ser 1 o más

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Also Known As:

The "45° Angled Wire Cap for Cat 6A UTP TG Jack" is also commonly referred to as a "Cat 6A UTP Jack Angled Wire Cap" or simply an "Angled Wire Cap for Cat 6A UTP Jack." This product is designed to provide strain relief and cable management for Cat 6A unshielded twisted pair (UTP) Ethernet cables when connected to a Cat 6A UTP TG Jack, enhancing the efficiency and organization of network installations.

About:

The "45° Angled Wire Cap for Cat 6A UTP TG Jack" is an accessory used in networking installations. It serves to provide strain relief and organized cable routing for Cat 6A unshielded twisted pair (UTP) Ethernet cables when connected to a Cat 6A UTP TG Jack. Its angled design helps with cable management and reduces stress on the cables, ensuring secure and dependable network connections.

Specification:

Product Type  Jack Accessory
Performance Level Category 6A
Connector Type Jack Accessory
Termination Style TG Style
Body Material Polycarbonate
Module Type Mini-Com
Wiring Scheme T568A/T568B
Shield Type Unshielded (UTP)
Sub Brand Pan-Net
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 75
Maximum Storage Temperature (°F) 167
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Color Off White
Overall Depth (In.) 0.94
Overall Depth (mm) 23.9
Overall Height (In.) 0.61
Overall Height (mm) 15.5
Overall Length (In.) 0.94
Overall Length (mm) 23.9
Overall Width (In.) 0.63
Overall Width (mm) 16
Part No: CJUDCAPIW-C


Common Applications:

• Office Environments: Used for cable management and protection in office networks, ensuring reliable connections for computers and phones.

• Commercial Installations: Provides organized cable routing and strain relief in retail stores, hotels, and other commercial spaces.

• Data Centers: Used to maintain neat and efficient cable connections within server racks and data center installations.

• Educational Institutions: Facilitates cable organization and reliability in schools and universities for educational technology and connectivity.

• Residential Networking: Used in homes to manage and protect Ethernet cables for devices and internet access.

• Telecommunications Infrastructure: Supports the installation and maintenance of telecommunications equipment and network connections.

Features:

• Angled Design: Its 45-degree angle aids in cable management, reducing stress on cables and facilitating organized routing.

• Secure Fit: Ensures a secure and reliable connection with Cat 6A UTP TG Jacks.

• Strain Relief: Provides strain relief for Ethernet cables, preventing damage and maintaining cable integrity.

• Cable Organization: Enhances cable organization and minimizes clutter in networking installations.

• Compatibility: Designed to work seamlessly with Cat 6A UTP Ethernet cables for efficient networking setups.

Standards Met:

Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category or Class Performance Levels at the Designated Swept Frequencies for that Category or Class, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, and RoHS Compliant.

Construction:

• Sturdy Plastic Housing: Made from high-quality plastic for durability and cable protection.

• Angled Design:
The 45-degree angle allows for efficient cable management and stress reduction on cables.

• Compatibility:
Specifically designed to securely fit Cat 6A UTP TG Jacks for dependable connections.

• Cable Strain Relief:
Provides strain relief to prevent cable damage and maintain cable integrity.

• Ease of Use:
Designed for user-friendly installation and cable organization.

Download PDF Spec Sheet
