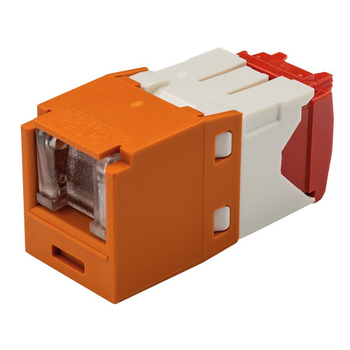

22-26 AWG Mini-Com Cat5e Shuttered Jack Module RJ45 TG Style CJH5E88TGVL

22-26 AWG Mini-Com Cat5e Shuttered Jack Module RJ45 TG Style CJH5E88TGVL
Roll over image to Zoom

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Also Known As:

There might not be a well-known alternative name, but it can be generally categorized under Ethernet connectors, RJ45 jack modules, or network jacks, especially those with a shuttered design for protection and TG style for specific termination technology.

About:

The CJH5E88TGVL is a Cat5e RJ45 jack module that is designed for optimal performance in network installations. Its compatibility with 22-26 AWG wires allows flexibility in wiring. The shuttered design ensures the internal components are protected from contaminants, and the TG style likely signifies a tool less or easy-to-install termination method.

Specification:

Product Type Jack Module
Performance Level Category 5e
Connector Type Jack Module - Shuttered
Termination Style TG Style
Body Material Polycarbonate
Contact Material Plated Phosphor Bronze
Module Type Mini-Com®
Wiring Scheme T568A/T568B
Shield Type Unshielded (UTP)
Sub Brand Pan-Net®
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 75
Maximum Storage Temperature (°F) 167
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Resistance Properties Heat-Resistant
Color Violet
Overall Depth (In.) 1.5
Overall Depth (mm) 38.1
Overall Height (In.) 0.71
Overall Height (mm) 18
Overall Length (In.) 1.5
Overall Length (mm) 38.1
Overall Width (In.) 0.62
Overall Width (mm) 15.7
Part No: CJH5E88TGVL

Common Applications:

 Offices: For workstations, meeting rooms to ensure a stable network connection.
 Data Centers: Installation in racks for reliable server connectivity.
 Residential: In homes for connecting devices to the internet.
 Educational Institutions: In classrooms and labs for network access.

Features:

• Cat5e Compatibility: Supports data transmission speeds as per Cat5e standards.
• Flexibility in Wiring: Compatible with 22-26 AWG wires.
• Shuttered Design: Protection from dust and other environmental contaminants.
• TG Style Termination: Possibly indicates easy, often toolless, installation.

Standards:

• TIA/EIA-568-B: Specifies the technical requirements for Cat5e components.
• ISO/IEC 11801: An international standard related to cabling for data transmission.
• RoHS Compliance: If the product is made free of hazardous substances, complying with RoHS standards.

Construction:

 Materials: Likely made of durable plastic, with metal contacts for effective data transmission.
 Design: Compact, designed for easy installation and optimal performance.
 Protection: The shuttered feature helps protect against environmental factors that could impact performance.
