22-24 AWG Mini-Com RJ45 TP Style Cat5e UTP Jack Module Patch ABS CJ5E88TBU

Where are we? 4 Continents 8 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
Also Known As:
• CJ5E88TBU Ethernet Jack
• Cat5e RJ45 Network Module
• Mini-Com Patch Connector
• Universal Network Interface Jack
About:

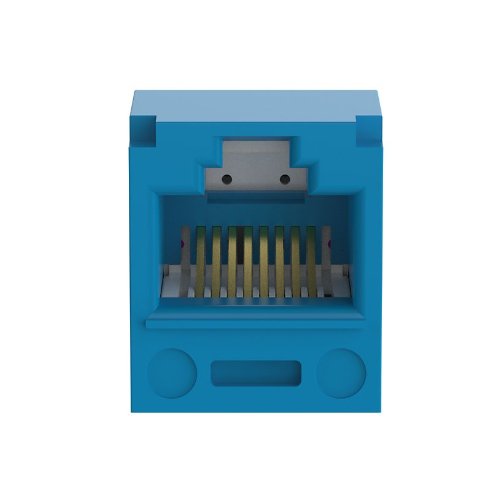

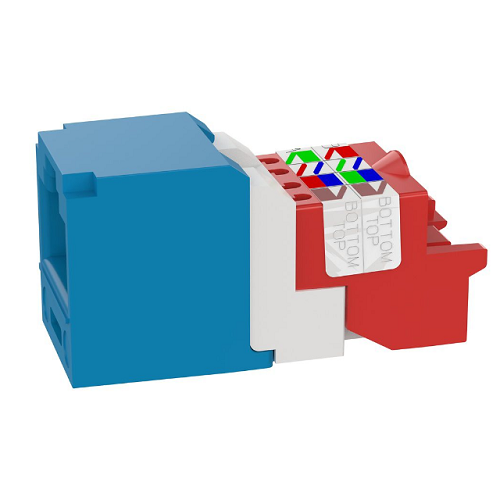

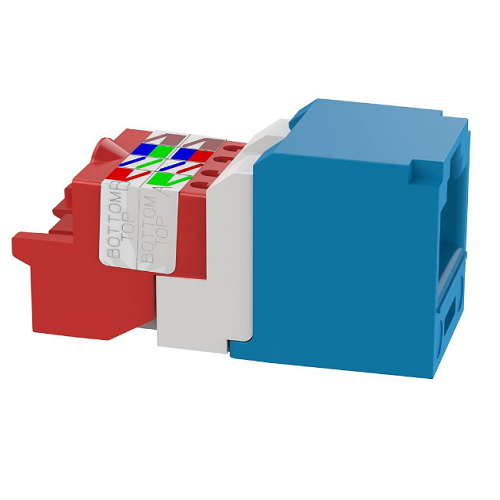

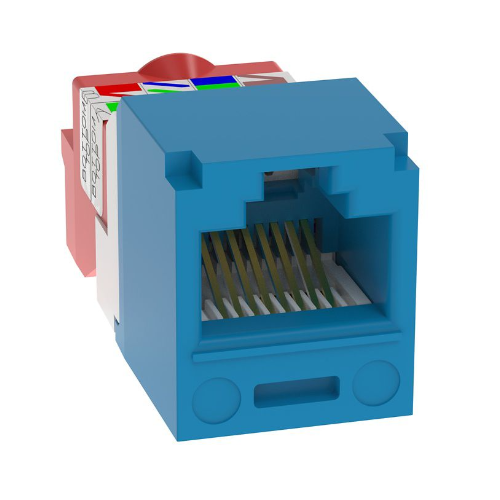

The CJ5E88TBU is a specialized RJ45 jack module specifically designed for Cat5e UTP (Unshielded Twisted Pair) cables within the 22-24 AWG range. Made from durable ABS plastic, this module ensures optimal performance, reliability, and durability for network connections, adhering to the established standards for Cat5e cabling.
Specification:
Product Type | Jack Module |
Performance Level | Category 5e |
Connector Type | Jack Module - Standard |
Termination Style | TP Style |
Body Material | ABS |
Contact Material | Plated Phosphor Bronze |
Module Type | Mini-Com® |
Wiring Scheme | T568A/T568B |
Shield Type | Unshielded (UTP) |
Sub Brand | Pan-Net® |
Maximum Operating Temperature (°C) | 65 |
Maximum Operating Temperature (°F) | 149 |
Minimum Operating Temperature (°C) | -10 |
Minimum Operating Temperature (°F) | 14 |
Maximum Storage Temperature (°C) | 70 |
Maximum Storage Temperature (°F) | 158 |
Minimum Storage Temperature (°C) | -40 |
Minimum Storage Temperature (°F) | -40 |
Resistance Properties | Heat-Resistant |
Color | Blue |
Overall Depth (In.) | 1.43 |
Overall Depth (mm) | 36.3 |
Overall Height (In.) | 0.71 |
Overall Height (mm) | 18 |
Overall Length (In.) | 1.43 |
Overall Length (mm) | 36.3 |
Overall Width (In.) | 0.62 |
Overall Width (mm) | 15.7 |
Part No: | CJ5E88TBU |
Common Applications:
• Corporate Environments: Used in office spaces for reliable, high-speed network connections for various devices.
• Home Networks: Ensures optimal performance for home Ethernet networks, connecting devices like PCs, smart TVs, and gaming consoles.
• Educational Institutions: Provides stable and efficient network connections in schools and colleges for internet and intranet access.
• Data Centers: A crucial component in data centers to ensure the efficient and reliable operation of servers and network equipment.
Features:
• High-Speed Data Transmission: Supports Cat5e standards for reliable, high-speed data transfers.
• Versatile Compatibility: Designed for 22-24 AWG wires, ensuring broad application and usage.
• Durable Material: Constructed from ABS plastic, offering strength and longevity.
• Ease of Installation: Engineered for straightforward, hassle-free installation and integration into various network setups.
• Standardized Connector: Features the universal RJ45 connector, ensuring compatibility with a wide range of Ethernet cables.
Standards:
• Transmission Standards: Meets or exceeds Cat5e standards for data transmission, ensuring reliable, high-speed connectivity.
• Safety and Quality: The ABS plastic and overall design adhere to industry safety and quality standards.
• Environmental Standards: Ensures minimal impact on the environment in terms of production, usage, and disposal.
• Fire Safety: Often incorporates flame-retardant materials to meet fire safety regulations.
Construction:
• Material: Built from robust ABS plastic, ensuring durability, and resistance to wear and environmental factors.
• Design: Features a compact, user-friendly design for easy installation and maintenance.
• Connector: Incorporates an RJ45 connector, universally accepted for Ethernet and networking cables.
• Wiring Integration: Designed to accommodate 22-24 AWG wires effectively, ensuring optimal data transmission.
