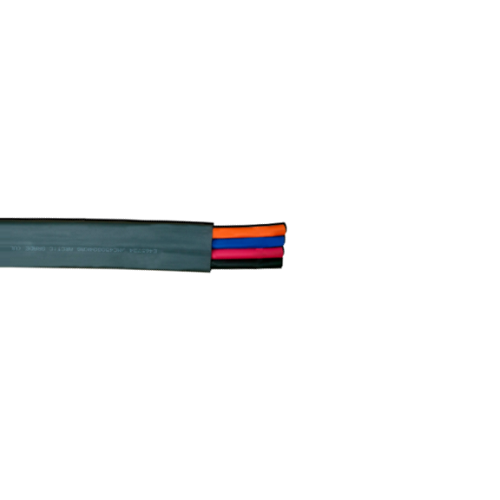

2/0 AWG 4C Flat Festoon Cable TPR Insulation and Jacket 600V

2/0 AWG 4C Flat Festoon Cable TPR Insulation and Jacket 600V

Applications:

Designed for power and control applications. Crane bridges and Gantries, hoists, monorail systems, traveling electrified equipment utilizing a cantenary system for cable installation.

Also Known As:

2/0 AWG 4C Flat festoon cable 600 V black PVC, TPR insulation festoon cable, 600 V flat portable cord black, festoon system cable black PVC, flat cable cranes conveyors 600 V, flexible festoon cable black 600V, 2/0 AWG 4C PVC flat festoon cable continuous flexing, 10 AWG 5‑conductor flat festoon cable, 2/0 AWG 4C UL VW‑1 CSA FT1 festoon cable, festoon track system power cable.

Construction:

Flexible Stranded Bare Copper Conductors TPR Insulation, Color Coded Wires Flame retardant and Oil resistant outer TPR jacket Black (other colors available)

Features:

Flat and Flexible Construction Rated for both indoor and outdoor use Suitable for Sub Zero operation Flexible at low temperatures Durable Oil Resistant Outer Jacket (UL) VW-1 / CSA FT1 Rated 105˚C

Technical Data:

Temperature Range:
-80˚C to 105˚C (static)
-50˚C to 70˚C (dynamic)

AC Voltage Rating:
600V Peak

Bend Radius:
5x Cable Thickness

Approvals:
(UL) Festoon 600V 105˚C
CSA Festoon 600V 105˚C

Specifications:

• Size : 2/0 AWG
• No. of Conductors: 4
• Conductor Stranding: 1330/30
• Insulation Thickness Inch (mm): 0.082 (2.08)
• Dimensions Inches: 0.783 x 2.712
• Dimensions (mm): 19.9 x 68.9
• Ampacity: 245
• Cable. Weight (lbs/Mft ): 2350
