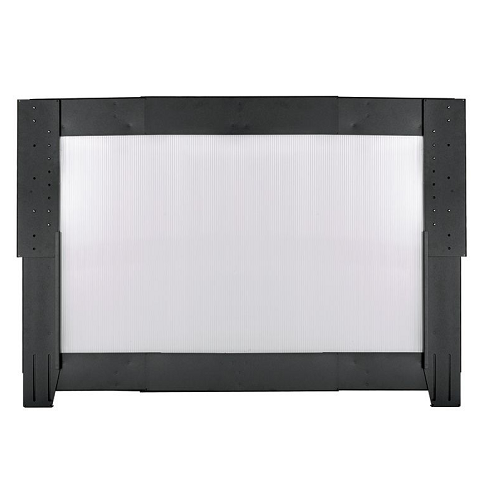

16-26 1200mm Net Contain Hot Aisle EOR Vertical Wall Steel/Polycarbonate C2HACERI1626W1

Product Information

Specification

Specification:

Net-Contain Universal Aisle Containment System

• Tool-less blanking panels shall be used to seal the area above shorter cabinets.

• The system shall be deployed on raised or slab floors.

• This system shall be a floor mounted free structure.

• The system shall be comprised of wall beams, end-of-row frames, dual sliding doors, and ceiling structures for roof containment or wall structures for wall containment. The system is independent of the cabinets; hence cabinets can be rolled-in/out easily.

• System height shall be adjustable from 42 RU to 52 RU with expandable containment length.

• The universal aisle containment system shall be configurable to roof containment (typically used for Cold Aisle Containment) and vertical wall containment (typically used for Hot Aisle Containment).

• The system shall be compatible with all major cabinet brands and sizes.

• Unoccupied cabinet space shall be sealed with full height blanking panels.

• This system shall match both current and future data center infrastructure.

• The system shall be capable of being added without disrupting existing in-cabinet equipment.
