14/4C FPLR Solid PVC Riser Shielded 75C Fire Alarm Cable 300V

14/4C FPLR Solid PVC Riser Shielded 75C Fire Alarm Cable 300V

Description:

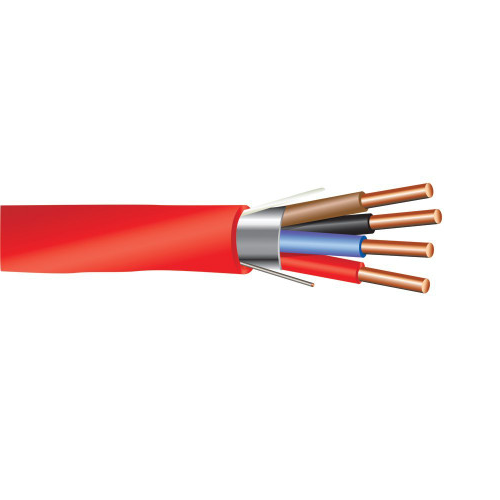

PVC insulated solid bare copper conductors, twisted with an overall red PVC jacket* with rip cord. Shielded version has an aluminum tape and drain wire.

Also Know As:

14/4C FPLR Cable, 14/4C Fire Alram Cable, 14/2C Riser FPLR Cable, 14/2CUnshielded FPLR Cable, 14/4C Solid FPLR Cable, 14/4C Red Fire Alram Cable, 14/4C 75C FPLR Cable, 14/4C Fire Protection Cable, 14/4C PVC FPLR Cable.

Application:

• Fire Protection
• Alarm
• Signal
• Monitor/Detection
• Audio Circuits
• Control Circuits
• Initiating Circuits
• Notification Circuits

Conductor: Solid Bare Copper*

Insulation: 18-12 AWG .010” PVC

Jacket: PVC

Shield: Aluminum Mylar

NEC Articles:

• 18-16 AWG: 760 FPLR, 800 CMR, 725 CL3R
• 14-12 AWG: FPLR, CL3R

Voltage Rating: 300 V

Temp. Rating: -25oC to +75oC

Drain Wire: 24 AWG

Specification:

AWG: 14
Conductor: 4
Stranded: Solid
CAP P/FT: 65
Outer Jacket Thickness: 0.015 In
Nominal OD: 0.255 In
Weight: 79 lbs/MFT
Part No: 81404SD
