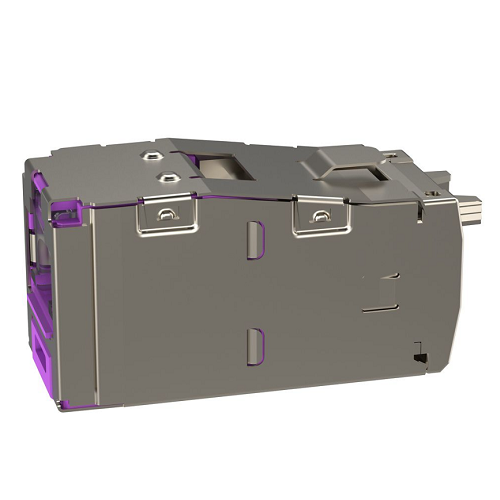

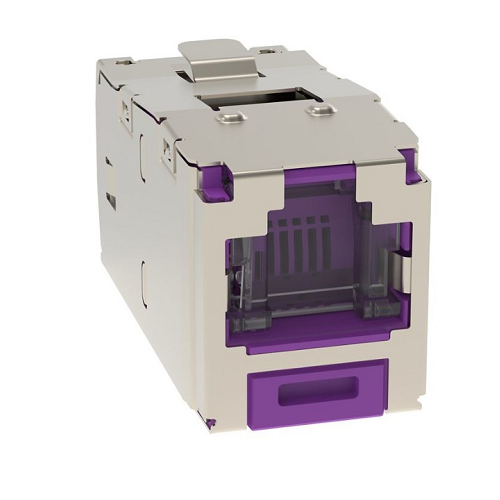

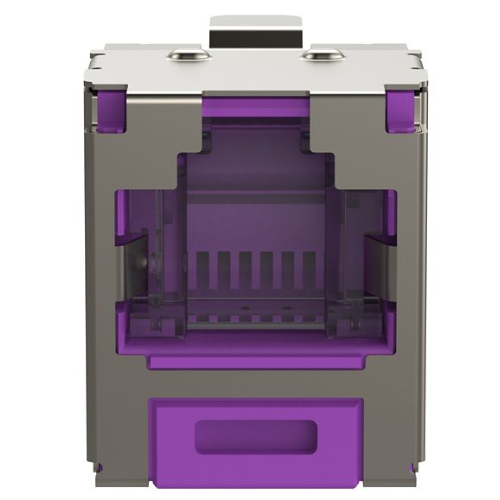

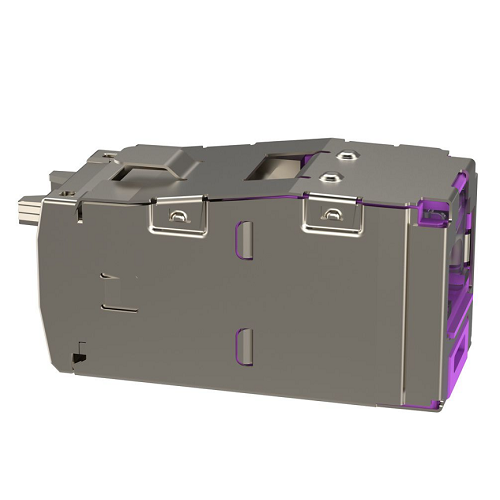

1 Port 22-26 AWG Mini-Com Cat6A 10Gig Shuttered Jack Module Shielded TG Style RJ45 CJSH6X88TGVLY

Where are we? 4 Continents 8 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
Also Known As:
This module may not have a commonly used alternative name, as it is quite specific. However, it is often referred to by its full part number: CJSH6X88TGVLY
About:
The 1 Port 22-26 AWG Mini-Com Cat6A 10Gig Shuttered Jack Module is designed for high-speed data networks, capable of supporting 10 Gigabit Ethernet. It's part of the Mini-Com modular connectivity system, known for its modularity and flexibility in network installations.
Specification:
Product Type | Jack Module |
Performance Level | Category 6A |
Connector Type | Jack Module - Shuttered |
Termination Style | TG Style |
Body Material | Polycarbonate |
Contact Material | Plated Phosphor Bronze |
Module Type | Mini-Com® |
Wiring Scheme | T568A/T568B |
Shield Type | Shielded (STP) |
Sub Brand | Pan-Net® |
Maximum Operating Temperature (°C) | 75 |
Maximum Operating Temperature (°F) | 167 |
Minimum Operating Temperature (°C) | -10 |
Minimum Operating Temperature (°F) | 14 |
Maximum Storage Temperature (°C) | 75 |
Maximum Storage Temperature (°F) | 167 |
Minimum Storage Temperature (°C) | -40 |
Minimum Storage Temperature (°F) | -40 |
Resistance Properties | Heat-Resistant |
Color | Violet |
Overall Depth (In.) | 1.5 |
Overall Depth (mm) | 38.1 |
Overall Height (In.) | 0.74 |
Overall Height (mm) | 18.8 |
Overall Length (In.) | 1.5 |
Overall Length (mm) | 38.1 |
Overall Width (In.) | 0.62 |
Overall Width (mm) | 15.7 |
Part No: |
CJSH6X88TGVLY |
Common Applications:
This module is typically used in various networking applications that require high-speed data transmission and network connectivity. Common applications include data centers, office networks, telecommunications rooms, and industrial environments.
Features:
• Shielded: The module is shielded to provide protection against electromagnetic interference (EMI) and crosstalk, ensuring reliable and high-quality network connections.
• Cat6A 10Gig Performance: It supports Category 6A performance, making it suitable for high-bandwidth applications, including 10 Gigabit Ethernet.
• Shuttered Design: The shuttered design helps protect the RJ45 port from dust and physical damage when not in use.
• Mini-Com Modular System: It is part of the Mini-Com modular connectivity system, which allows for easy installation and customization of network connections.
Standards:
The specific standards that this module complies with can vary depending on the manufacturer. However, it should typically adhere to industry standards for Cat6A cabling and connectors, such as ANSI/TIA-568-C.2 and ISO/IEC 11801. The compliance with these standards may depend on the manufacturer and the specific product.
Construction:
The construction of the 1 Port 22-26 AWG Mini-Com Cat6A 10Gig Shuttered Jack Module Shielded TG Style RJ45 CJSH6X88TGVLY includes high-quality materials and connectors, along with the shielded and shuttered design to reduce interference and protect the RJ45 port. This module is designed for easy installation in compatible faceplates, patch panels, or other network equipment.
