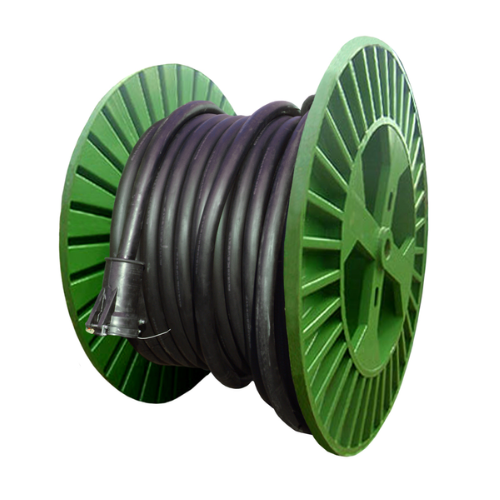

Shore Power Male Plug with THOF-500E Cable Assembly

Product Information

Specification

About:

The MIL-C-24368/1 shore power plug with THOF-500E cable assembly have been certified to meet NAVSEA's rigorous standards and are included in the QPL-24368 list, ensuring their compliance with military and marine requirements. Designed for longevity, these plugs are manufactured to withstand harsh marine conditions. They are perfect for use in naval, commercial, and industrial marine settings. They offer unmatched corrosion resistance and durability, making them the ultimate choice for dependable power connections on the open sea.

Approvals: QPL 24368 listed.

Also Known as:

Shore Power Plug, THOF 500E Cable, Marine Shore Power Plug, Shore Power Plug 500 Amp, 500A power plug, 500 amp shore male plug, Shore power adapter, Shore power plug and socket, Shore Socket.

Specifications:

Features:

• 500MCM 3C, enhanced THOF-500E, 150 ft length extension cable (lengths up to 1000ft available)

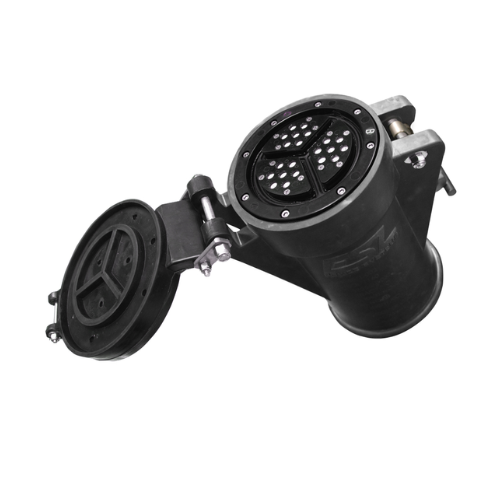

• Factory potted with (2) 500A 500VAC ESL MIL-C-24368/1 plugs, one plug at each end of cable
• Complies with NAVSEA specifications for Navy ships
• MIL-C-246368 US &  NATO standard for vessels & port facilities
• Mates with MIL-C-24368/2 shore power plugs
• Available with optional cable pigtails factory installed, or cable potting kit for field termination of customer’s cables
• Can accept varying lengths of cable to accommodate individual facility layout
• NBR rubber receptacle housing and 316 stainless steel hardware resists humidity, salt spray, sunlight, fuel, ozone, and ice.
