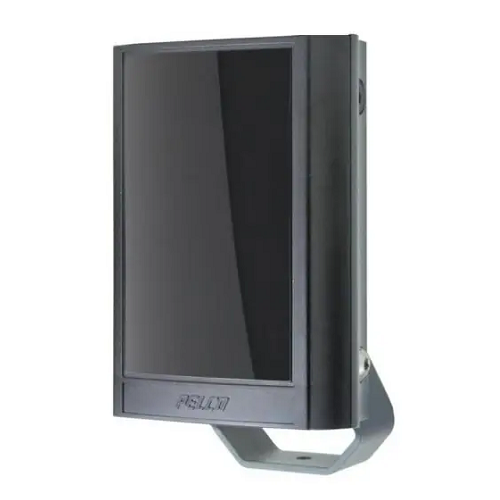

Covert IR Illuminator with 110m Range IR940L-110

Product Information

Specification

The IR940L-110 from Pelco is a Covert Infrared LED Illuminator designed to provide discreet, high-performance illumination for surveillance applications. Featuring an Interchangeable Diffuser System (IDS), this illuminator allows users to easily adjust the illumination angle to suit their specific field of view. With the factory-installed IDS, it offers a 35° illumination angle, while the standard IDS (included) provides a 60° angle. For wider coverage, the optional LENSPKL-LED wide-angle lens pack (sold separately) can increase the angle to 80° or 120°. The IDS utilizes holographic light-diffusing technology, producing a highly targeted and accurate beam pattern that directs light precisely where it’s needed. This results in improved illumination distances and reduces overexposure of foreground objects, ensuring optimal performance in low-light environments. Equipped with an LED lifetime management system, the IR940L-110 guarantees high reliability and consistent optical output over time. The illuminator also features an LED status feedback system, providing real-time updates on operational performance, which simplifies commissioning and routine maintenance checks. For added convenience, the illuminator can be used with an optional RC-LED remote control, allowing for safe and easy setup from ground level, even in challenging installation locations. With its covert design, advanced features, and flexibility, the IR940L-110 is an excellent solution for providing invisible, infrared illumination in surveillance systems where discreet lighting is crucial.

Features:

• Distances Up to 110 m (361 ft)
• LED Status Feedback and Lifetime Management Systems
• Platinum LED Technology; High Efficiency, High Reliability
• Built-in Photo Cell for Automatic On/Off Operation; Photocell Following Output
• Interchangeable Diffuser System (IDS) Using Lenses with Angles Up to 120 Degrees

Specifications:

• Product Type: Covert IR Illuminator
• Distance Range: 300-399 Feet
• Power Input: 12VDC or 24VAC
• Angle Range: 111-120º Angle
• Wavelength: 940 NM
• Part Number : IR940L-110
