5/16" Hose Barbed X 1/8" MPT Hose Barb X FIP Rigid Female Adapter Brass Fittings 32055
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Hex: | 0.56 |
| A: | 1.47 |
| B: | 0.97 |
| Part Number: | 32055 |
| Approx Weight: | 0.040 LBS |
| Hose Id X Male Bspt: | 5/16” x 1/8” |
| Shape: | Straight/Connector |

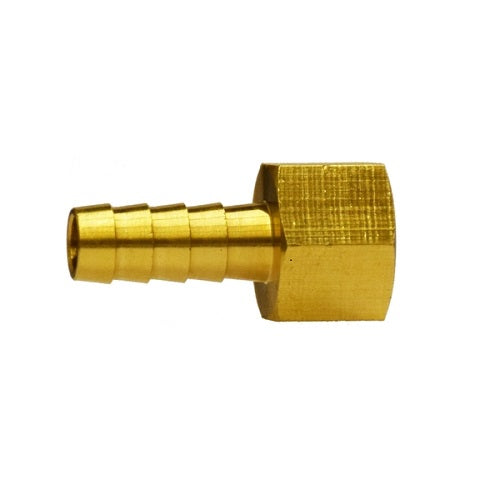

5/16" X 1/8" HoseBarb X FIP Rigid Female Adapter Brass Fittings 32055
Description:
5/16 X 1/8 HOSE BARB X FIP ADAPTER
Also Known As:
Adapter , HoseBarb Adapter , Adapter Fitting, Male Adapter , Brass Fittings Adapter
• Temperature and Working Pressure Ranges
From -400 F to + 1600 F at 150 PSI maximum.
• Tolerance
+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
• Assembly Instructions
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right)
View Catalog Page
