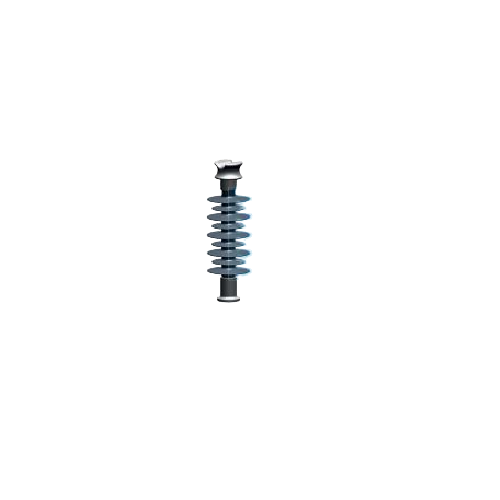

46 kv Standard Version Polymer Line Post Insulator For Distribution PL046

Where are we? 4 Continents 9 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About
GAMMA Polymer Distribution Line Post Insulators provide superior support and electrical insulation on overhead distribution lines, conductor jumpers or leads. They can be installed horizontally or vertically on metal, concrete or wooden structures.
The core of the insulator is made of a corrosion resistant epoxy resin fiberglass rod constructed exclusively for electrical and mechanical applications. Housing and sheds consist of a one-piece injection molded composite material that chemically bonds to the core rod. This creates a water-tight seal between the polymer and the rod that is impervious to moisture penetration.
The composite material itself is made of silicone rubber with additives to enhance performance in polluted enviroments and under a variety of conditions such as rain, ice, sand and salt.
The line end of GAMMA's Polymer Line Post Insulator is available in two configurations: Hot Dip Galvanized Iron Casting or Porcelain. The porcelain end fitting provides superior leakage distance and reduced unit weight. Both are sealed to prevent water from penetrating to the fiberglass core
GAMMA Polymer Line Post Insulators are designed, manufactured and tested according to ANSI standard C29.18.
Specification:
ANSI (C29.18) Class : 51-4F
Neck type : F
Arcing distance : 13-3/5"
Leakage distance : 38-1/2"
SCL : 2,240
Maximum density cantilever load : 1,080
Tensile strength : 3,000
Rated voltage : 46
Low-frequency dry flashover : 148
Low-frequency wet flashover : 120
Critical impulse flashover, positive : 250
Critical impulse flashover, negative : 270
Low-frequency test voltage, RMS to ground, kV : 10
Maximum RIV at 1,000 KHZ, μν : 4
Center hole nominal thread size : 3/4"
Note 1 : Dimensions in inches.
• Combines a ceramic head and silicone elastomer housing properties superior leakage distance and reduced unit weight.
• Housing: High voltage silicone - High temperature vulcanized (HTV).
• Fittings: Hot dip galvanized steel.
Images are only for References
