200A 480VAC Reverse Service Safety-interlocked Power Outlet Appleton Mate

Product Information

Specification

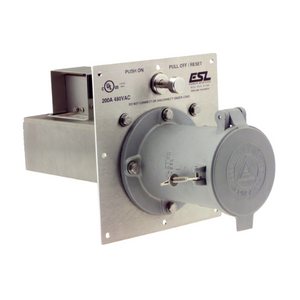

Reverse Service Safety-Interlocked Power Outlet

The Reverse Service Safety-Interlocked Power Outlet is a rugged and reliable solution for industrial power distribution, designed for seamless compatibility with Appleton AP20034ERS female plugs.

• Integrated Actuator Rod – Allows users to easily turn on/off and reset tripped breakers for enhanced safety and convenience.

• High-Performance Circuit Protection – Equipped with a UL-listed 3P molded case circuit breaker rated at 200A, 65kAIC @ 480VAC, providing superior short-circuit and overcurrent protection. Other trip and AIC ratings are available upon request.

• Electrical Interlock for Safety – Designed as a direct replacement outlet for ESL single-gang or multi-gang assemblies, ensuring safe and reliable operation.

• Secure and Versatile Wiring – Installer wires directly to the circuit breaker with:

  • (3) Phase terminals: Accepts #4 AWG - 4/0 (21 - 107mm²) wire range

  • (1) Ground terminal: Accepts #14 AWG - 2/0 (2 - 67mm²) wire range

• Corrosion-Resistant Stainless Steel Construction – Built for durability with a stainless steel frame, faceplate, actuator rod, rod seal, interlock mechanism, contact terminal screws & spring, snap cover, and all fasteners.

Also known as:

Power outlet, 200 amp power outlet, saftey outlet, Reverse Service Power Outlet, Interlocked Power Outlet, Sleeve Power Outlet.

Product Information:

Features:

• UL Listed safety-interlocked power outlet containing an integral 200A circuit breaker
• Actuator rod allows user to turn on/off and reset tripped breaker
• UL Listed circuit breaker rated 65kAIC @ 480VAC provides short circuit & over current protection
• Furnished with reverse service Appleton receptacle AP20034ERS
• Snap cover protects receptacle when not in use
• Electrically-interlocked replacement outlet for use in ESL single gang or multi gang assemblies
• Mates with Appleton AP20034ERS female plug

Approvals:

• UL/cUL Listed Module
• UL 489 Listed / CSA Certified Molded Case Circuit Breaker
• UL Listed Receptacles
