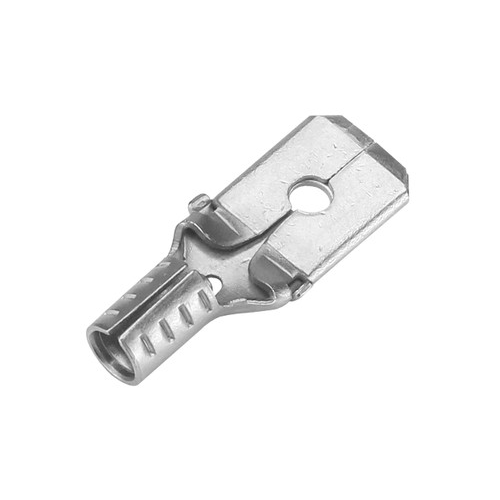

16-14 AWG Male Non-Insulated Disconnect Terminals (Pack of 25)

Product Information

Specification

16-14 AWG Male Non-Insulated Disconnect Terminals

Also Known As:

Disconnect Terminal, Non-Insulated, Quick Connect, Slip-on Connector, Male Connector

About:

Non-insulated disconnect terminals are ideal for applications where connection-disconnection may be necessary. Also known as quick connect or slip-on connectors these terminals are known for their ease of use. Non-insulated disconnect terminals offer excellent holding force. They achieve this by utilizing an indentation on the tongue of the female part. This indentation locks into a hole on the male tab. How do you use them? Start by selecting the correct terminal based on wire gauge application. Strip the wires to the correct length and insert a wire into the back of the terminal. Now, crimp the non-insulated disconnect terminal using the proper tool. Perform a tug test to ensure that the wire doesn't pull out. Next, repeat the process on another wire using the opposite gender terminal. Snap the two terminals together and you're done. Selecting the correct non-insulated disconnect terminal may not be an easy task.

Construction:

• Voltage Rating: 600-V
• Dielectric Strength: 900-V/mil
• Vol. Resistivity: 1015 Ohm-cm3

Standards:

• UL
• CSA
• RoHS

 Specifications:

• Wire Gauge: 16-14 AWG
• Tab Size: 0.250 x 0.032
• Gender: Male
• Length: 0.69 Inch
• Tab Width: 0.250 Inch
• Tab Thickness: 0.03 Inch
• Part Number: TD14-250M-25
