100FT Fray Resistant Braided Expandable Sleeving Black SE50PSC-CR0
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

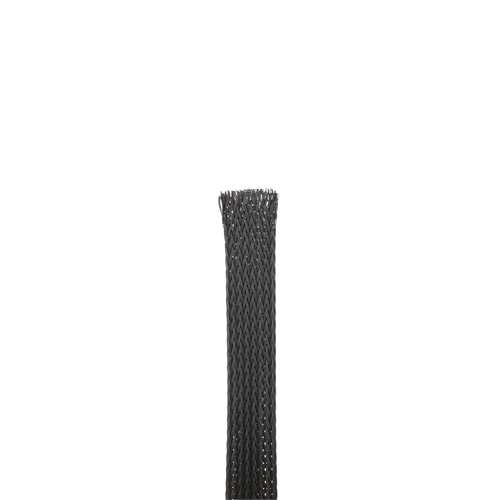

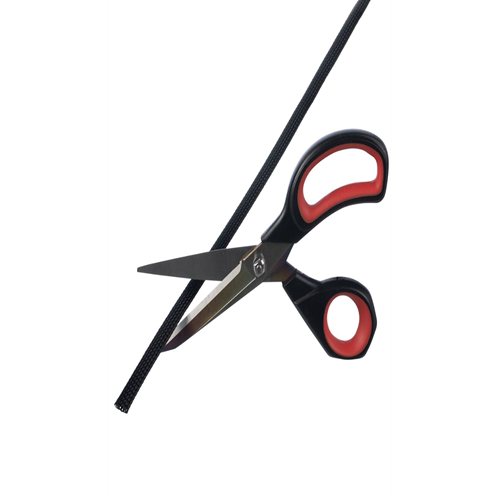

Fray resistant braided expandable sleeving, .5" (12.7 mm) diameter, can be cut with a pair of scissors and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is flexible and the open weave will not trap heat or humidity. Polyethylene Terephthalate. 100 ft (30.5 m) reel. Color Black.
Specification :
| Note | Resists fraying when cut with scissors |
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Material | PET |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Resistance Properties | Fray-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -70 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.5 |
| Nominal Diameter (mm) | 12.7 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Product Type | Braided Expandable Sleeving |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19.1 |
| Minimum Bundle Diameter (In.) | 0.25 |
| Minimum Bundle Diameter (mm) | 6.4 |
Features :
• Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards.
Download PDF Spec Sheet
