HVTECK Copper 3/C 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA
Select a Gauge
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
| Product Name | Length | Price (Per FT.) | Action | |
|---|---|---|---|---|
 |
Product Name
HVTECK Copper 3/C 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
2 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
 |
Product Name
1 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Black PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
1/0 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
 |
Product Name
2/0 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Black PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
2/0 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
3/0 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
4/0 AWG 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
250 MCM 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
350 MCM 3C HVTECK Copper 220 mil NLEPR 50% Ground TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
500 MCM 3C HVTECK Copper 220 mil NLEPR 50% Ground TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
500 MCM 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Black PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
500 MCM 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
750 MCM 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Black PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|
|
Product Name
750 MCM 3C HVTECK Copper 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA |
Length
/FT
|
Price (Per FT.)
Call 516-482-6313 for pricing
|
Action
|

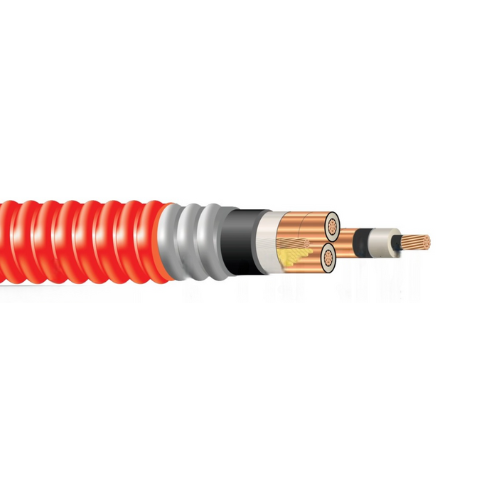

HVTECK Copper 3/C 220 mil NLEPR TS AIA 15kV 133% IL Red PVC Jacket CSA
Application:
The 15kV HVTECK is a CSA armoured cable for industrial and commercial medium voltage applications. Rated FT4, -40°C, Hazardous Locations (HL). These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated for 1000 lbs /FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemical soils and acids and are flame retardant.
Also known as:
Construction:
Conductor:
Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Conductor Shield:
Semi-conducting cross-linked copolymer
Insulation:
220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% insulation level
Insulation Shield:
Strippable semi-conducting cross-linked copolymer
Copper Tape Shield:
Helically wrapped 5 mil copper tape with 25% overlap
Filler:
Interstices filled with non-hydroscoping/non-wicking fillers
Grounding Conductor:
Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8
Binder:
Polypropylene tape
Inner Jacket:
PVC inner jacket
Armour:
Aluminum Interlocked Armour (AIA). (Optional galvanized steel armour GSIA available upon request)
Overall Jacket:
Red Polyvinyl Chloride (PVC) Jacket
Standards:
• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• CSA C22.2 No. 174 Cables in Hazardous Locations
• CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
• CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
• CSA C68.3 Shielded & Concentric Neutral Power Cable - 5 to 46 kV
• CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
• CSA HL - for Hazardous Locations rating
• CSA SUN RES - for Sunlight Resistant rating
• ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
• ICEA T-29-520 Flame Test (210,000 BTU/Hr)
[short]
