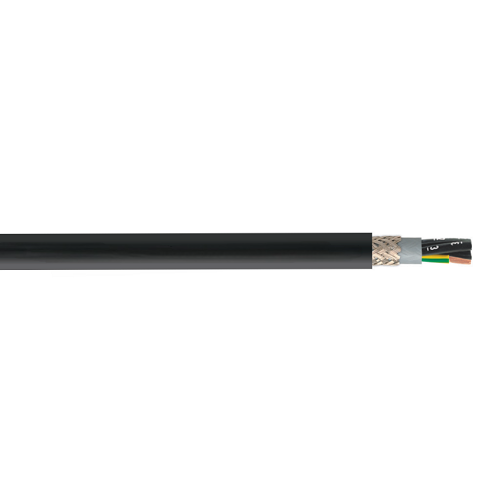

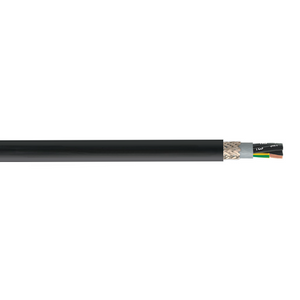

HELUKABEL JZ-600 HMH-C PVC CONTROL AND CONNECTION CABLE

HELUKABEL JZ-600 HMH-C PVC CONTROL AND CONNECTION CABLE

Applications:

Control and connection cable in tool machinery, conveyor belts, production lines, plant construction, in air-conditioning devices, in metallurgical, steel and rolling mills. For fixed installation and flexible applications with occasional, not constantly recurring free movement without forced motion, without tensile stress and for medium mechanical stress. The cable is suitable for use in dry, damp and wet locations, outdoors (fixed installation) and on plaster. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all round large contact area of the copper braiding.

Also Known As:

Helukabel JZ-600 PVC control cable, HMH-C control and connection cable, JZ-600 HMH-C PVC cable, Helukabel PVC connection cable, Helukabel 600V control cable, Flexible PVC control cable, JZ-600 HMH-C cable for machinery, UV resistant PVC control cable, Electromagnetic compatibility PVC cable.

Technical Data:

Control and connection cable in alignment with DIN VDE 0285-525-2-51 / DIN EN 50525-2-51, DIN VDE 0285-525-3- 11 / DIN EN 50525-3-11

Temperature range
flexible -25°C to +70°C
fixed -40°C to +70°C

Nominal voltage
AC U0/U 600/1000 V

Test voltage core/core
4000 V

Coupling resistance
at 30 MHz, approx. 250 Ohm/ km

Minimum bending radius
flexible 15x Outer-Ø
fixed 7.5x Outer-Ø

Cable Structure:

• Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
• Core insulation: halogen-free polymer acc. to DIN VDE 0207-363- 7 / DIN EN 50363-7 (compound type TI6)
• Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
• G = with protective conductor GN-YE, in the outer layer (JZ)
• Cores stranded in layers with optimal lay lengths
• Inner sheath: halogen-free polymer
• Screen: braided screen of tinned copper wires, approx. coverage 85%
• Outer sheath: halogen-free polymer acc. to DIN VDE 0207-363-8
/ DIN EN 50363-8 (compound type TM7)
• Sheath colour: black (RAL 9005)
• Length marking: in meters

Properties:

• resistant to: UV radiation, weathering effects
• largely resistant to: oil
• for outdoor use
• halogen-free
• the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Tests:

• halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
• corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
• bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332- 3-24 / IEC 60332-3-24
• smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034- 1+2 / IEC 61034-1+2
• UV-resistant acc. to DIN EN ISO 4892-2
• weather-resistant acc. to DIN EN ISO 4892-2
• certifications and approvals: EAC

Notes:

• the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
