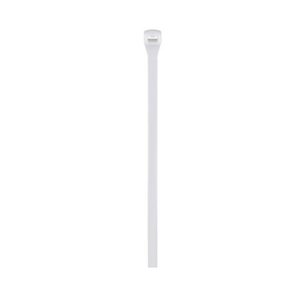

13.6x0.14 Intermediate Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4I-M (Pack of 1000)

Name: 13.6x0.14 Intermediate Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4I-M (Pack of 1000)
Brand: Wire Xpress
SKU: CBR4I-M
Price: 348.71 USD
Availability: InStock
Rating: 4.93 (7926 reviews)

Roll over image to Zoom

13.6x0.14 Intermediate Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4I-M (Pack of 1000)

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: CBR4I-M

Select a Variant

13.6x0.14 Intermediate Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4I-M (Pack of 1000)

Availability: In stock

Price:

Precio habitual: $348.71
Precio de oferta: $348.71

Los gastos de envío se calculan en la pantalla de pagos.

Qty:

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Specification:

Product Type	Cable Tie
Sub Brand	Contour-Ty
Color	Natural
Environment	Indoor
Material	Nylon 6.6
Overall Length (In.)	13.6
Overall Length (mm)	345.4
Body Width (In.)	0.14
Body Width (mm)	3.8
Body Thickness (In.)	0.052
Body Thickness (mm)	1.3
Maximum Bundle Diameter (In.)	4
Maximum Bundle Diameter (mm)	101.6
Minimum Bundle Diameter (In.)	0.07
Minimum Bundle Diameter (mm)	1.8
Minimum Loop Tensile Strength (N)	178
Minimum Loop Tensile Strength (lb)	40
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Standards Met	SAE-AS23190A, SAE-AS33671, RoHS Compliant
Military Cross Reference Number	MS3367-33-9
For Use With	GTS-E, GS2B-E, PTS, PPTS, STS2
Application	General
Part Features	Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
Part No:	CBR4I-M

Contour-Ty Cable Ties – Nylon 6.6

• Low profile head avoids snags and reduces overall bundle size

• Unique design prevents wire and cable damage

• For indoor use

• Parallel-entry limits exposure to sharp edges and protects ZRUNHUV·DUPVKDQGV

• Outside teeth and smooth round edges protect cable jacket – ideal for high vibration applications

• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation

• Fully enclosed head for consistent strength

• Nylon 6.6 cable ties in natural and colors meet the testing requirements of SAE Aerospace Standard AS23190 and the dimensional requirements of SAE Aerospace Standard AS33671

• UL Listed for use in plenum or air handling spaces per NEC
