1000' 26 AWG 4 Pairs STP Stranded/Shielded CAT5E 350MHz Cable

Product Information

Specification

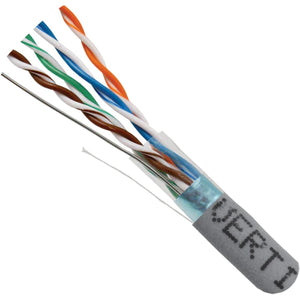

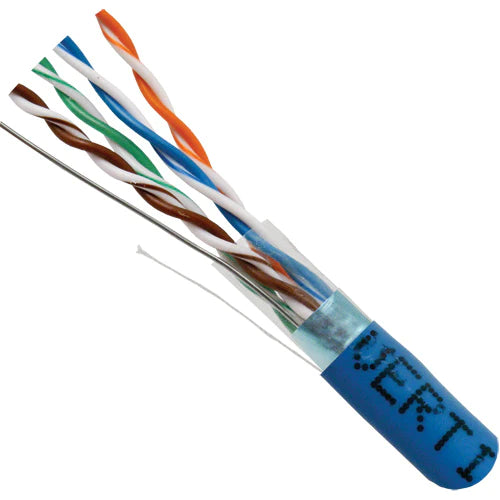

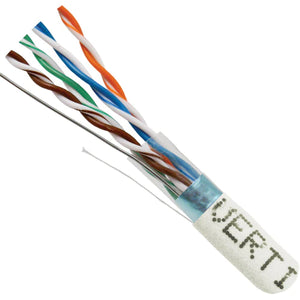

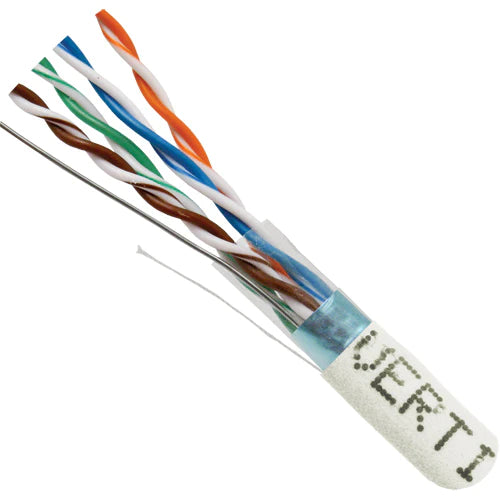

1000' 26 AWG 4 Pairs STP Stranded/Shielded CAT5E 350 MHz Cable

DESCRIPTION:

Category-5E, 26AWG, STP w/Drain Wire, 8-Conductor, Stranded-Bare Copper.

FEATURES:

⦿ Category-5E Shielded Twisted Pair
⦿ High-Performance Data Cable
⦿ Easily Identified Color-Striped Pairs
⦿ 26AWG Stranded Copper Conductors
⦿ Exceeds TIA/EIA 568-C.2 Standards
⦿ ETL Listed, RoHS Compliant
⦿ 1000ft Pull Box

Technical Data.

⦿ Rated Voltage 30v

Conductor Stranded Bare Copper

⦿ Size 26 AWG

⦿ Strands (mm) 7X 0.16

Insulation HDPE

⦿ Insulation Diameter (±0.05mm) 0.96

⦿ Nominal Wall Thickness (mm): 0.18

⦿ Twisted Pair Diameter 1.92

⦿ Average Lay Length (mm) ≤30

⦿ PE-Tape: Yes

⦿ Drain Wire (mm) 1/0.5 CCS

⦿ AL-Foil: Yes

Color of Pairs Pair

⦿ Pair 1: Blue, White-Blue

⦿ Pair 2: Orange, White-Orange

⦿ Pair 3: Green, White-Green

⦿ Pair 4: Brown, White-Brown

Jacket FR-PVC

⦿ Nominal Wall Thickness (mm): 0.5

⦿ Outer Diameter (±0.5mm) 6.0

⦿ Rip Cord: Yes (Nylon)

Marking on Jacket

⦿ VERTICAL 4003289 ETL VERIFIED CAT5E SHIELDED STRANDED TO TIA/EIA 568-C.2 CM 26 AWG STP C(ETL)US ROHS XXXFT

Electrical Characteristics:

⦿ Conductor Resistance (Ω/100m) ≤14.5

⦿ Core-Core Resistance Unbalance (%) ≤5.0

⦿ Insulation Resistance (ΩKm(DC500V Charge 1 Min)) ≥5000
