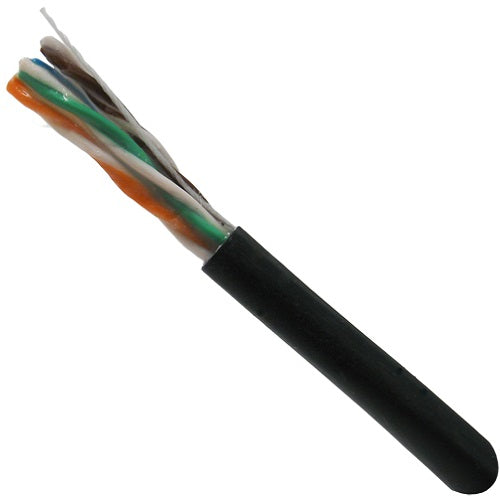

1000' 24 AWG 4 Pairs Black CAT5E CMXF Gel Flooded Core LLDPE Jacket Shielded Cable

Product Information

Specification

Category-5E CMXF Direct Burial, Flooded Core, 8-Conductor, Outdoor Jacket, AWG24 Solid Bare Copper.

FEATURES:

⦿ High-Performance Data Cable

⦿ 350 MHz Bandwidth for Data Applications,
     Fast Ethernet and 155 Mbps TP-PMD/CDDI

⦿ Category-5E Shielded Twisted Pair

⦿ Easily Identified Color-Striped Pairs

⦿ 24 AWG Solid Copper Conductors

⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801

⦿ CAN/CSA-C22.2 No. 214

⦿ Direct Burial Gel Filled (Flooded Core)

⦿ ETL Listed, RoHS Compliant

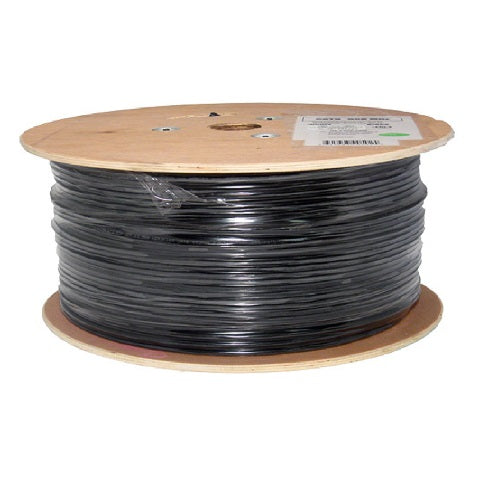

⦿ 1000 ft Wooden Spool

Technical Data:

⦿ Rated Temperature 75

⦿ Application Horizontal Wiring in LAN

⦿ Product Standard Certification CMX

⦿ Reference Standard TIA/EIA 568 & ISO/IEC 11801

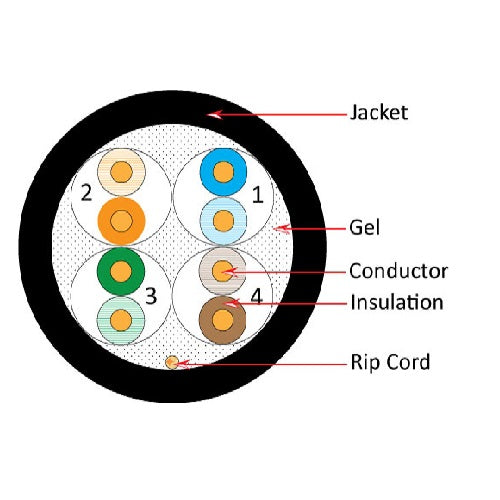

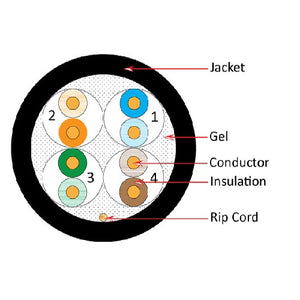

Conductor Solid Bare Copper:

⦿ Size 24 AWG

Insulation PE:

⦿ Average Thickness (mm) 0.208

⦿ Min. Point Thickness (mm) 0.186

⦿ Insulation Diameter (±0.005mm) 0.91

⦿ Twisted Pair Diameter (±0.01) 1.92

Filler Gel

⦿ PE Film: Yes

 Assembly Diameter (±0.2 mm): 4.00

(Jacket (Black) LLDPE (UV))

⦿ Average Thickness (mm) 0.60

⦿ Min. Point Thickness (mm) 0.54

⦿ Outer Diameter (±0.10mm) 5.40

⦿ Rip Cord: Yes

Color of Pairs:

⦿ Pair 1: Blue, White-Blue

⦿ Pair 2: Orange, White-Orange

⦿ Pair 3: Green, White-Green

⦿ Pair 4: Brown, White-Brown

Mechanical Characteristics:

⦿ Test Object Jacket

⦿ Test Material LLDPE

⦿ Before Tensile Strength (Mpa) ≥13.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-40±2º Cx4 hrs) No Crack

Marking on Jacket:

⦿ VERTICAL 4001453 cETLus VERIFIED UTP 4PR 24AWG OUTDOOR DIRECT BURIAL (FLOODED) UV LLDPE CAT5E 350MHz TIA/EIA - 568B.2 RoHS XXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
