4 Inch Square To 4 Inch Ocatgon Device Ring 5/8 Inch Raised 52C4-5/8 (pack of 75)

Product Information

Specification

About:

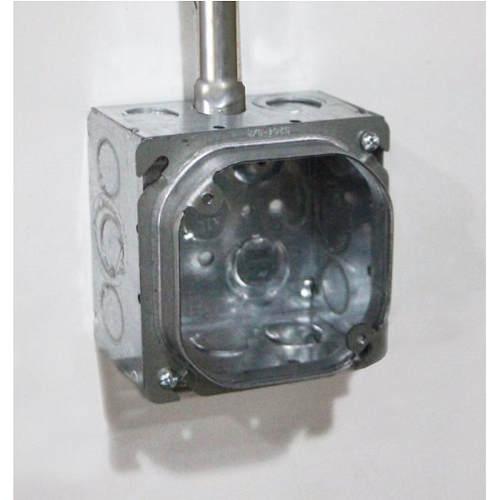

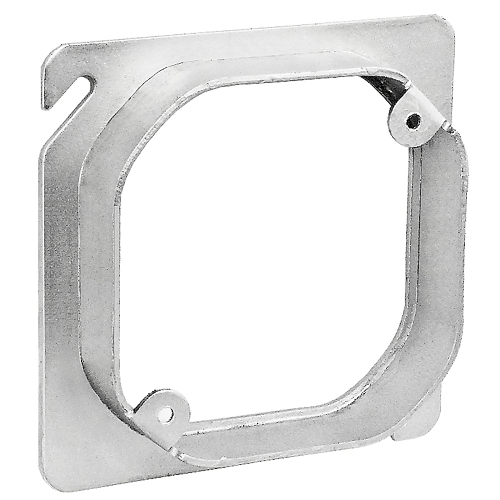

• 4" square to octagon raised device rings are used to mount light fixtures in walls and ceilings.
• Rings convert a 4" square box to a 4" octagon opening with 8-32 threaded mounting tabs for lighting retrofit applications.
• Octagon design allows additional space for led drivers that do not fit in traditional square to round rings.

Also Known As:

4 Inch Ocatgon Device Ring, 4" Octagon Fixture Adapter, Square to Octagon Device Ring, Octagon Device Mounting Adapter, Ocatgon Device.

Specification:

• Type: Ocatgon Device Ring
• Material: Galvanized Steel
• Product Height: 0.63 Inch
• Product Width: 4.0 Inch
• Color: Silver
• UPC: 785592121615

Features:

• Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
• Not rated for ceiling fan support, static fixture load only
• Fixture Ears 3-1/2" O.C.
