TP/APC Elite Male to LC/UPC 12-Fiber Singlemode LGX Mount Compatible blue Adapter FB43-1300-12FSM

Product Information

Specification

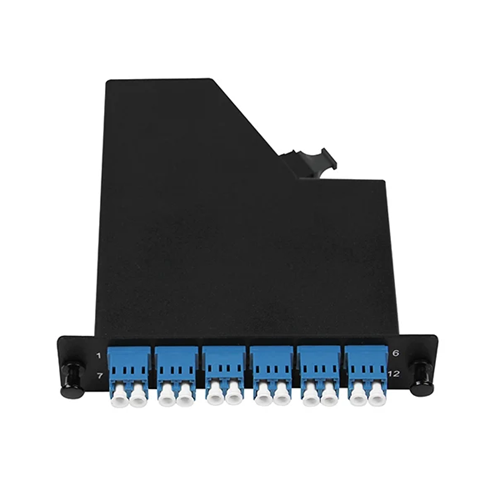

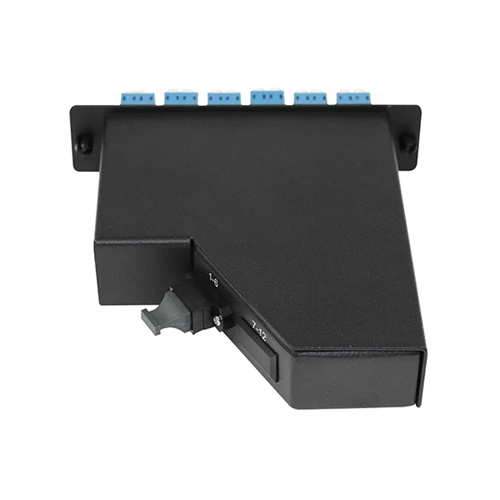

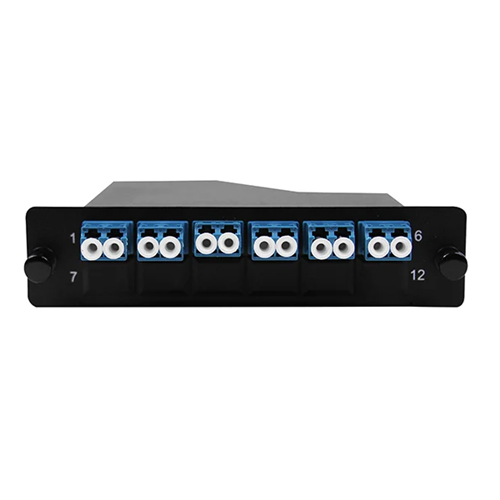

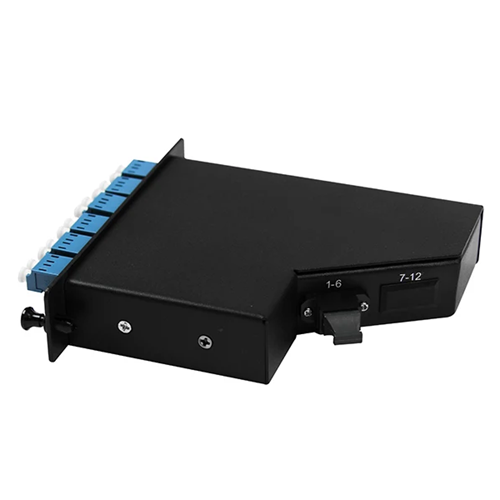

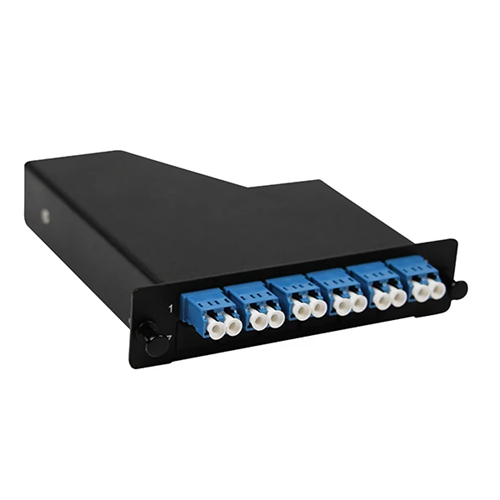

The 12-Fiber MTP® Elite to LC Cassette is a pre-terminated, high-density fiber optic solution designed for fast and efficient fiber deployment in data centers, enterprise networks, and other high-performance fiber infrastructure applications. This cassette provides a seamless transition from a 12-fiber MTP® Elite Male connector to 12 LC/UPC fiber connections, allowing easy connectivity between MTP® trunk cables and standard LC patch cables.

The cassette features a factory-installed fan-out assembly that provides reliable fiber management while reducing installation time and complexity. With its MTP® Elite low-loss technology, OS2 singlemode fiber, and Method A polarity, it delivers excellent optical performance, scalability, and flexibility for modern high-density networking environments.

Features :

High-Density Fiber Solution: Provides a compact and efficient method for connecting MTP® trunk cables to LC equipment ports.

Pre-Terminated Plug-and-Play Design: Factory-installed breakout assembly allows quick installation without field termination.

MTP® Elite Low-Loss Performance: Designed with ultra-low insertion loss technology for improved optical performance and reduced signal loss.

12 LC Fiber Connections: Supports six duplex LC connections on the front panel for easy equipment patching.

MTP® Elite Male Connector: Includes a pinned 12-fiber MTP® Elite connector for direct connection to compatible MTP® trunk cables.

Singlemode OS2 Fiber: Optimized for long-distance, high-speed fiber optic applications.

Method A Polarity: Ensures proper fiber transmission mapping within structured cabling systems.

LGX Compatible Design: Fits standard LGX fiber enclosures, panels, and termination boxes.

Modular Infrastructure Support: Enables easy upgrades and changes without replacing existing trunk cable systems.

Flexible Installation: Compatible with both vertical and horizontal MPO/MTP® cassette mounting systems.

RoHS Compliant: Meets environmental and safety compliance requirements.
