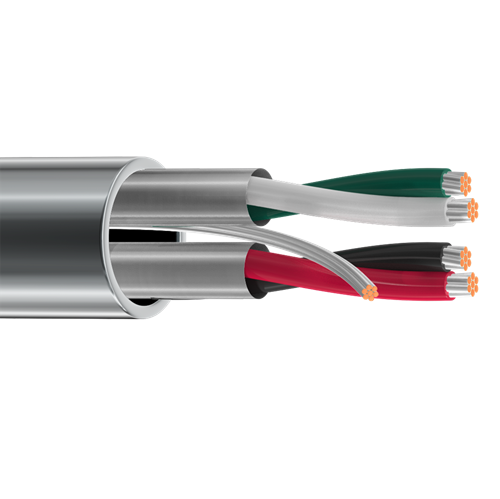

Belden 8723 22 AWG 2 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable
Description:
Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Insulation:
• Material: PP - Polypropylene
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)
Inner Shield:
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC
• Individual Beldfoil (aluminum foil-polyester tape) shield for each pair, providing 100% coverage, plus a 24 AWG stranded tinned copper drain wire.
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.160 in (4.06 mm)
• Overall Cable Diameter (Nominal): 0.160 in (4.06 mm)
Standards:
• Voltage Rating: 300V.
• Nominal Impedance: 52 Ohm
• Operating Temperature: -20°C to +75°C.
Applications:
• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Specifications:
• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8723
• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8723
|
Manufacturer Equivalents |
|
| Alpha Wire : |
Chrome : 2466C |
| Belden : |
Chrome : 8723 0601000 |
| General Cable : | Chrome : C1352A |
| Honeywell : | Chrome : 1264 |
| Omni Cable : | Chrome : BEL8723 |
| Tappan : | Chrome : A29925.1 |
| Wirexpress : | Chrome : B8723 |
| Omni : | Chrome : BEL8723 |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
