Belden 9877 20 AWG 12 Pair 7x28 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Name: Belden 9877 20 AWG 12 Pair 7x28 Stranding Tinned Copper 300V Audio Control and Instrument Cable
Brand: Belden Cable
SKU: NNC9877
Price: 26.95 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9877

Select a Gauge

Belden 9877 20 AWG 12 Pair 7x28 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $26.95 /FT
Sale price: $26.95 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

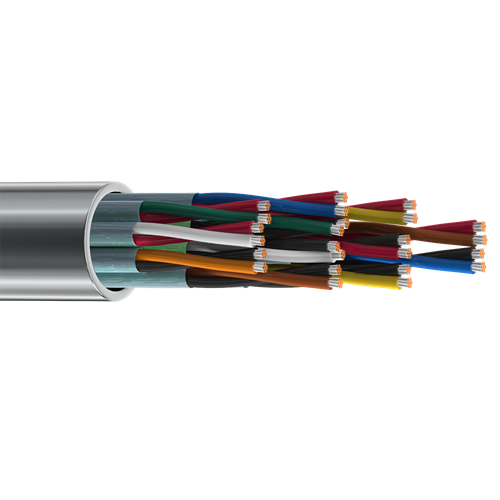

Belden 9877 20 AWG 12 Pair 7x28 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 20 AWG stranded (7x28) tinned copper conductors, polypropylene insulation, 12 twisted pairs, individually shielded with Beldfoil (100% coverage), 22 AWG stranded tinned copper drain wire, overall PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC
• Individual Beldfoil (aluminum/polyester foil) shield with 100% coverage on each pair, plus a 22 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.050 in (1.3 mm)
• Nom. Diameter: 0.617 in (15.7 mm)
• Overall Cable Diameter (Nominal): 0.617 in (15.7 mm)

Standards:

• Impedance: 50 Ohms
• Operating Temperature: -20°C to +80°C.
• Voltage Rating: 300V (CM) and 30V (AWM 2919).

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
