Blue Sea Mini Battery Switche M-Series Single Circuit

Product Information

Specification

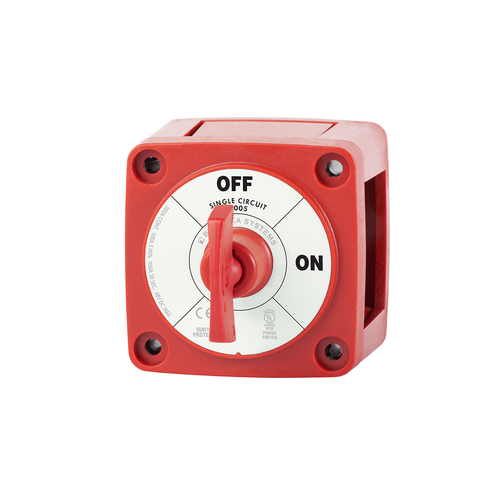

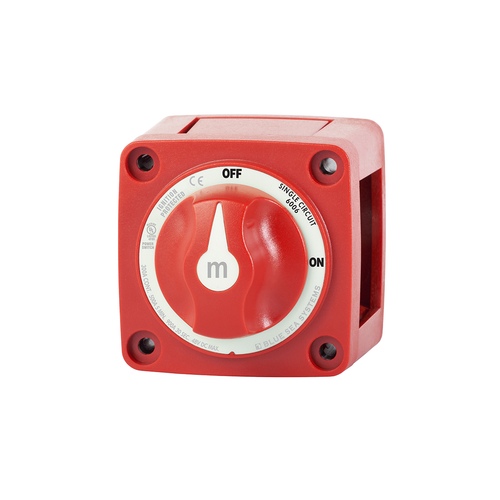

Blue Sea Mini Battery Switche M-Series Single Circuit

Also Known As:

Mini Battery Switche, Removable Key, Single Circuit, Blue Sea Switche

About:

Blues Sea Systems compact high-amperage switches are vapor/ignition protected and UL listed. Each switch is built with safety in mind. They prevent the spread of flame in the event of a fire onboard a vessel. Each switch is built to handle the toughest marine environments that the seas can create. This is why these switches are so well known and trusted.  The M-Series are 300 Amp continuous rated for outboards, small gasoline or diesel engines.  300 Amps continuous, 500 Amps (5 mins.) intermittent rating. Crank rating (10 sec.) 1500 Amps (1 min.) 775 Amps. Selecting the correct battery switch is not an easy task.

Construction:

• Mounting holes: #10 screw
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22 mm) Stud length accepts multiple cable terminals
• Tin-plated copper studs for maximun conductivity and corrosion resistance

Strands:

• CE
• IP 66
• UL 1500
• ISO 8846
• SAE J1171
• UL 1107 (EBS-6005 Only)
• ABYC E-11 (EBS-6005 Only)

Features:

• Built In Safety Features
• Durable Aluminum Case
• Advanced Multi Stage Charging
• One-piece terminal stud design never loosen over time
• Case design allows surface, rear, or front panel mounting options
• Selector type battery switches with a "make or break" contact design allows switching • without power interruption

Specifications:

• Switch Positions : 4
• Color : Red
• Maximum Voltage : 32 V DC
• Continuous Rating : 350 A
• Intermittent Rating : 600 A (5 min)
• Battery Inputs : 2
• Dimensions : W=2.82", H=2.82", D=3.07"
• Part Number: EBS
